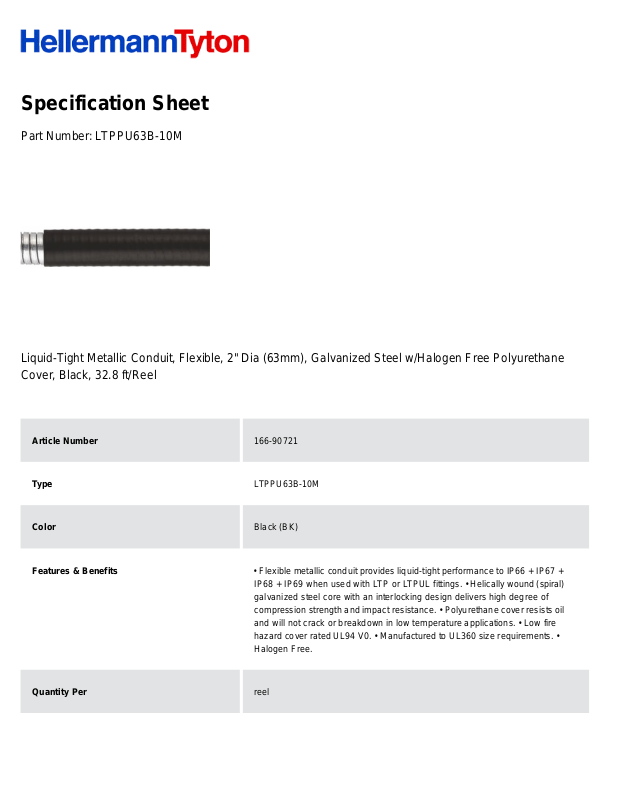

Specification Sheet
Part Number:
LTPPU63B-10M
Liquid-Tight Metallic Conduit, Flexible, 2" Dia (63mm), Galvanized Steel w/Halogen Free Polyurethane
Cover, Black, 32.8 ft/Reel
Article Number
166-90721
Type
LTPPU63B-10M
Color
Black (BK)
Features & Benefits
• Flexible metallic conduit provides liquid-tight performance to IP66 + IP67 +
IP68 + IP69 when used with LTP or LTPUL fittings. • Helically wound (spiral)
galvanized steel core with an interlocking design delivers high degree of
compression strength and impact resistance. • Polyurethane cover resists oil
and will not crack or breakdown in low temperature applications. • Low fire
hazard cover rated UL94 V0. • Manufactured to UL360 size requirements. •
Halogen Free.
Quantity Per
reel
Product Description
A flexible, liquid tight galvanized steel conduit with a smooth oil resistant
polyurethane coating. LTPPU series is a halogen free conduit designed for low
temperature performance, and has excellent flame retardation, limited smoke
and low toxicity properties. Use with LTP or LTPUL series metallic fittings for
IP66 + IP67 + IP68 + IP69 ratings. May be used in hazardous locations when
accompanied with LTPUL or EXD metallic fittings.
Short Description
Liquid-Tight Metallic Conduit, Flexible, 2" Dia (63mm), Galvanized Steel
w/Halogen Free Polyurethane Cover, Black, 32.8 ft/Reel
Global Part Name
LTPPU63B-10M-GS/PUR DS-BK
Technical Description
Manufacturer Reference Number: LTPPU63B-10M
Length L (Imperial)
32.8
Length L (Metric)
10.0
Diameter D (imperial)
2.03
Diameter D (metric)
51.6
Outside Diameter OD(Imperial)
2.35
Outside Diameter OD(metric)
59.7
Nominal Diameter (Imperial)
2-1/2
Nominal Diameter (Metric)
63
Material
Galvanised Steel (GS) Polyurethane resin DS (PUR DS)
