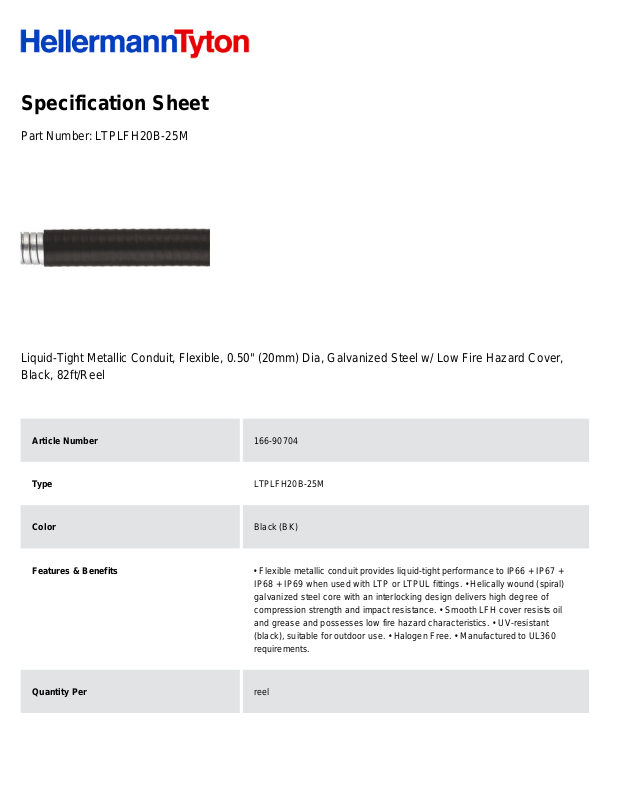

Specification Sheet
Part Number:
LTPLFH20B-25M
Liquid-Tight Metallic Conduit, Flexible, 0.50" (20mm) Dia, Galvanized Steel w/ Low Fire Hazard Cover,
Black, 82ft/Reel
Article Number
166-90704
Type
LTPLFH20B-25M
Color
Black (BK)
Features & Benefits
• Flexible metallic conduit provides liquid-tight performance to IP66 + IP67 +
IP68 + IP69 when used with LTP or LTPUL fittings. • Helically wound (spiral)
galvanized steel core with an interlocking design delivers high degree of
compression strength and impact resistance. • Smooth LFH cover resists oil
and grease and possesses low fire hazard characteristics. • UV-resistant
(black), suitable for outdoor use. • Halogen Free. • Manufactured to UL360
requirements.
Quantity Per
reel
Product Description
A flexible, liquid-tight galvanized steel conduit with a smooth, oil-resistant and
low fire hazard cover. LTPLFH series is a general purpose, non-UL rated
liquid-tight conduit used in applications that require movement, vibration and
bending. Designed for applications within enclosed areas where limited smoke,
low flame spread and low toxic gas emissions are required. Use with
HelaGuard LTP or LTPUL Metallic Compression Fittings for IP66 + IP67 + IP68
+ IP69 ratings. May be used in hazardous locations when accompanied with
LTPUL or EXD metallic fittings.
Short Description
Liquid-Tight Metallic Conduit, Flexible, 0.50" (20mm) Dia, Galvanized Steel w/
Low Fire Hazard Cover, Black, 82ft/Reel
Global Part Name
LTPLFH20B-25M-GS/PO-BK
Technical Description
Manufacturer Reference Number: LTPLFH20B-25M
Length L (Imperial)
82.0
Length L (Metric)
25.0
Diameter D (imperial)
0.63
Diameter D (metric)
16.0
Outside Diameter OD(Imperial)
0.83
Outside Diameter OD(metric)
21.1
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
20
Material
Polyolefin (PO) Galvanised Steel (GS)
