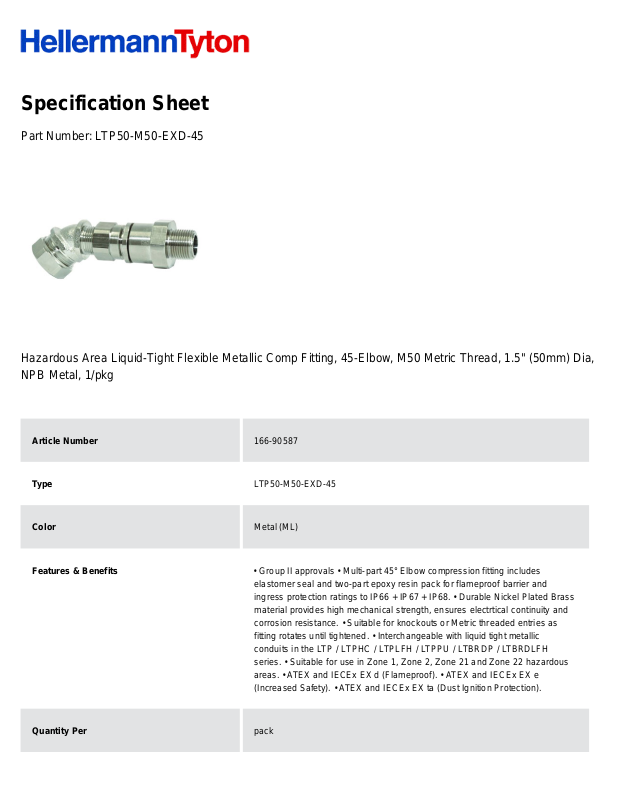

Specification Sheet
Part Number:
LTP50-M50-EXD-45
Hazardous Area Liquid-Tight Flexible Metallic Comp Fitting, 45-Elbow, M50 Metric Thread, 1.5" (50mm) Dia,
NPB Metal, 1/pkg
Article Number
166-90587
Type
LTP50-M50-EXD-45
Color
Metal (ML)
Features & Benefits
• Group II approvals • Multi-part 45° Elbow compression fitting includes
elastomer seal and two-part epoxy resin pack for flameproof barrier and
ingress protection ratings to IP66 + IP67 + IP68. • Durable Nickel Plated Brass
material provides high mechanical strength, ensures electrtical continuity and
corrosion resistance. • Suitable for knockouts or Metric threaded entries as
fitting rotates until tightened. • Interchangeable with liquid tight metallic
conduits in the LTP / LTPHC / LTPLFH / LTPPU / LTBRDP / LTBRDLFH
series. • Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22 hazardous
areas. • ATEX and IECEx EX d (Flameproof). • ATEX and IECEx EX e
(Increased Safety). • ATEX and IECEx EX ta (Dust Ignition Protection).
Quantity Per
pack
Product Description
Flameproof 45° Elbow gland with inner Compound Barrier offers high
specification, high quality solution for EX d, EX e, and EX ta applications.
ATEX and/or IEC approvals for Group II. For indoor or outdoor use
applications in Zone 1, Zone 2, Zone 21 and Zone 22 Hazardous areas. Nickel
plated brass compression style fitting suitable for knockouts and NPT or Metric
threaded entries for IP66 + IP67 + IP68 ingress ratings. Use with LTP / LTPHC
/ LTPPU / LTBRDP / LTBRDLFH / and LTPLFH metallic conduit.
Short Description
Hazardous Area Liquid-Tight Flexible Metallic Comp Fitting, 45-Elbow, M50
Metric Thread, 1.5" (50mm) Dia, NPB Metal, 1/pkg
Global Part Name
LTP50-M50-EXD-45-NPB/PA6-ML
Technical Description
Manufacturer Reference Number: LTP50-M50-EXD-45
Length L (Imperial)
6.30
Length L (Metric)
159.9
Variant
45° Elbow
Height H (Imperial)
2.44
Height H (Metric)
62.0
Nominal Diameter (Imperial)
1-1/2
Nominal Diameter (Metric)
50.0
Material
Polyamide 6 (PA6) Nickel Plated Brass (NPB)
Material Shortcut
NPB PA6
