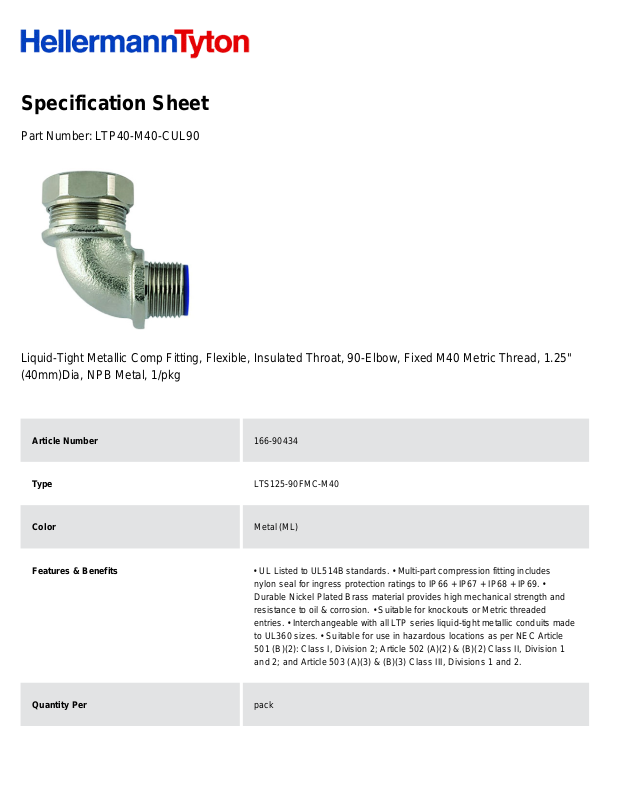

Specification Sheet
Part Number:
LTP40-M40-CUL90
Liquid-Tight Metallic Comp Fitting, Flexible, Insulated Throat, 90-Elbow, Fixed M40 Metric Thread, 1.25"
(40mm)Dia, NPB Metal, 1/pkg
Article Number
166-90434
Type
LTS125-90FMC-M40
Color
Metal (ML)
Features & Benefits
• UL Listed to UL514B standards. • Multi-part compression fitting includes
nylon seal for ingress protection ratings to IP66 + IP67 + IP68 + IP69. •
Durable Nickel Plated Brass material provides high mechanical strength and
resistance to oil & corrosion. • Suitable for knockouts or Metric threaded
entries. • Interchangeable with all LTP series liquid-tight metallic conduits made
to UL360 sizes. • Suitable for use in hazardous locations as per NEC Article
501 (B)(2): Class I, Division 2; Article 502 (A)(2) & (B)(2) Class II, Division 1
and 2; and Article 503 (A)(3) & (B)(3) Class III, Divisions 1 and 2.
Quantity Per
pack
Product Description
Multi-part 90 Elbow compresssion fitting with fixed external Metric threads for
liquid-tight performance. Metric threaded fittings supplied with insulated throat
which protects conductors from mechanical damage caused by vibration.
Constructed with Nickel Plated Brass components that resists corrosion,
ensures high mechanical strength and electrical continuity. Metric thread is UL
Listed and suitable for hazardous locations as defined by NEC Article 501.
Fitting comprised of body, nut, grounding ferrule and nylon compression seal.
For use with LTP series liquid tight metallic conduit.
Short Description
Liquid-Tight Metallic Comp Fitting, Flexible, Insulated Throat, 90-Elbow, Fixed
M40 Metric Thread, 1.25" (40mm)Dia, NPB Metal, 1/pkg
Global Part Name
LTS125-90FMC-M40-NPB/PA6-ML
Technical Description
Manufacturer Reference Number: LTP40-M40-CUL90
Length L (Imperial)
2.76
Length L (Metric)
70.0
Variant
90° Elbow
Height H (Imperial)
2.05
Height H (Metric)
52.0
Nominal Diameter (Imperial)
1-1/4
Nominal Diameter (Metric)
40.0
Material
Nickel Plated Brass (NPB) Polyamide 6 (PA6)
Material Shortcut
PA6 NPB
