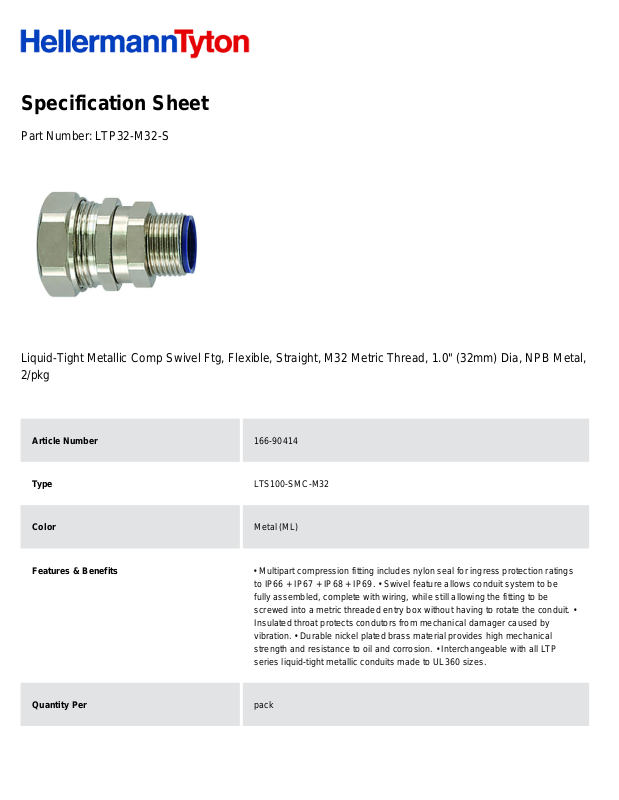

Specification Sheet
Part Number:
LTP32-M32-S
Liquid-Tight Metallic Comp Swivel Ftg, Flexible, Straight, M32 Metric Thread, 1.0" (32mm) Dia, NPB Metal,
2/pkg
Article Number
166-90414
Type
LTS100-SMC-M32
Color
Metal (ML)
Features & Benefits
• Multipart compression fitting includes nylon seal for ingress protection ratings
to IP66 + IP67 + IP68 + IP69. • Swivel feature allows conduit system to be
fully assembled, complete with wiring, while still allowing the fitting to be
screwed into a metric threaded entry box without having to rotate the conduit. •
Insulated throat protects condutors from mechanical damager caused by
vibration. • Durable nickel plated brass material provides high mechanical
strength and resistance to oil and corrosion. • Interchangeable with all LTP
series liquid-tight metallic conduits made to UL360 sizes.
Quantity Per
pack
Product Description
Multipart straight compresssion fitting with swivel external Metric threads for
liquid-tight performance. Constructed with nickel plated brass components that
resists corrosion, ensures high mechanical strength and electrical continuity.
Fitting comprised of body, swivel thread, nut, grounding ferrule and nylon
compression seal. For use with LTP series liquid tight metallic conduit.
Short Description
Liquid-Tight Metallic Comp Swivel Ftg, Flexible, Straight, M32 Metric Thread,
1.0" (32mm) Dia, NPB Metal, 2/pkg
Global Part Name
LTS100-SMC-M32-NPB/PA6-ML
Technical Description
Manufacturer Reference Number: LTP32-M32-S
Length L (Imperial)
2.24
Length L (Metric)
56.9
Variant
Straight
Height H (Imperial)
1.65
Height H (Metric)
42.0
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
32.0
Material
Nickel Plated Brass (NPB) Polyamide 6 (PA6)
Material Shortcut
PA6 NPB
