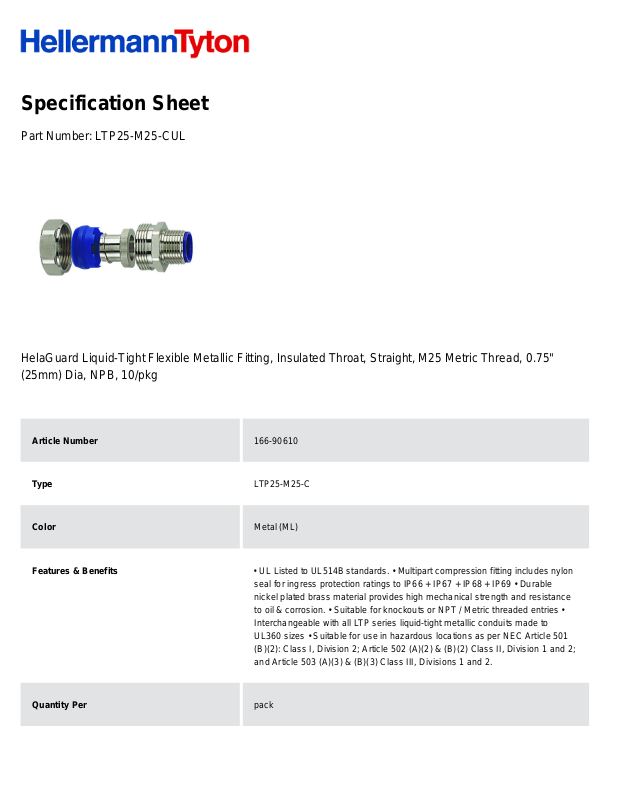

Specification Sheet
Part Number:
LTP25-M25-CUL
HelaGuard Liquid-Tight Flexible Metallic Fitting, Insulated Throat, Straight, M25 Metric Thread, 0.75"
(25mm) Dia, NPB, 10/pkg
Article Number
166-90610
Type
LTP25-M25-C
Color
Metal (ML)
Features & Benefits
• UL Listed to UL514B standards. • Multipart compression fitting includes nylon
seal for ingress protection ratings to IP66 + IP67 + IP68 + IP69 • Durable
nickel plated brass material provides high mechanical strength and resistance
to oil & corrosion. • Suitable for knockouts or NPT / Metric threaded entries •
Interchangeable with all LTP series liquid-tight metallic conduits made to
UL360 sizes • Suitable for use in hazardous locations as per NEC Article 501
(B)(2): Class I, Division 2; Article 502 (A)(2) & (B)(2) Class II, Division 1 and 2;
and Article 503 (A)(3) & (B)(3) Class III, Divisions 1 and 2.
Quantity Per
pack
Product Description
Multipart straight compresssion fitting with fixed external NPT or Metric threads
for liquid-tight performance. Metric threaded fittings supplied with insulated
throat which protects conductors from mechanical damage caused by vibration.
Constructed with nickel plated brass components that resists corrosion,
ensures high mechanical strength and electrical continuity. UL Listed and
suitable for hazardous locations as defined by NEC Article 501. Fitting
comprised of body, nut, grounding ferrule and nylon compression seal. For use
with LTP series liquid tight metallic conduit.
Short Description
HelaGuard Liquid-Tight Flexible Metallic Fitting, Insulated Throat, Straight, M25
Metric Thread, 0.75" (25mm) Dia, NPB, 10/pkg
Global Part Name
LTP25-M25-C-NPB/PA6-ML
Technical Description
Manufacturer Reference Number: LTP25-M25-CUL
Length L (Imperial)
1.63
Length L (Metric)
41.5
Variant
Straight
Height H (Imperial)
1.38
Height H (Metric)
35.0
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
25.0
Material
Nickel Plated Brass (NPB) Polyamide 6 (PA6)
Material Shortcut
NPB PA6
