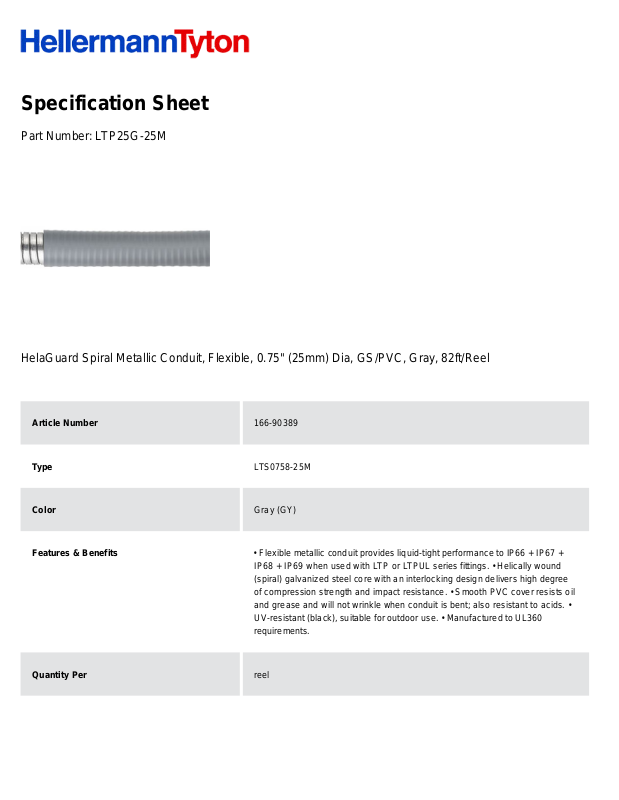

Specification Sheet
Part Number:
LTP25G-25M
HelaGuard Spiral Metallic Conduit, Flexible, 0.75" (25mm) Dia, GS/PVC, Gray, 82ft/Reel
Article Number
166-90389
Type
LTS0758-25M
Color
Gray (GY)
Features & Benefits
• Flexible metallic conduit provides liquid-tight performance to IP66 + IP67 +
IP68 + IP69 when used with LTP or LTPUL series fittings. • Helically wound
(spiral) galvanized steel core with an interlocking design delivers high degree
of compression strength and impact resistance. • Smooth PVC cover resists oil
and grease and will not wrinkle when conduit is bent; also resistant to acids. •
UV-resistant (black), suitable for outdoor use. • Manufactured to UL360
requirements.
Quantity Per
reel
Product Description
A flexible, liquid-tight galvanized steel conduit with a smooth oil resistant PVC
coating. LTP series is a general purpose, non-UL rated liquid-tight conduit
used in applications that require movement, vibration and bending. Use with
LTP or LTPUL series metallic fittings for IP66 + IP67 + IP68 + IP69 ratings.
Designed for applications where a UL listing or CSA certification is not required
but where a need still exists for a flexible metal conduit to protect wires against
impact and exposure to oils and chemicals. My be used in hazardous locations
when accompanied with LTPUL or EXD metallic fittings.
Short Description
HelaGuard Spiral Metallic Conduit, Flexible, 0.75" (25mm) Dia, GS/PVC, Gray,
82ft/Reel
Global Part Name
LTS0758-25M-GS/PVC-GY
Technical Description
Manufacturer Reference Number: LTP25G-25M
Length L (Imperial)
82.0
Length L (Metric)
25.0
Diameter D (imperial)
0.83
Diameter D (metric)
21.0
Outside Diameter OD(Imperial)
1.04
Outside Diameter OD(metric)
26.4
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
25.0
Material
Galvanised Steel (GS) Polyvinylchloride (PVC)
