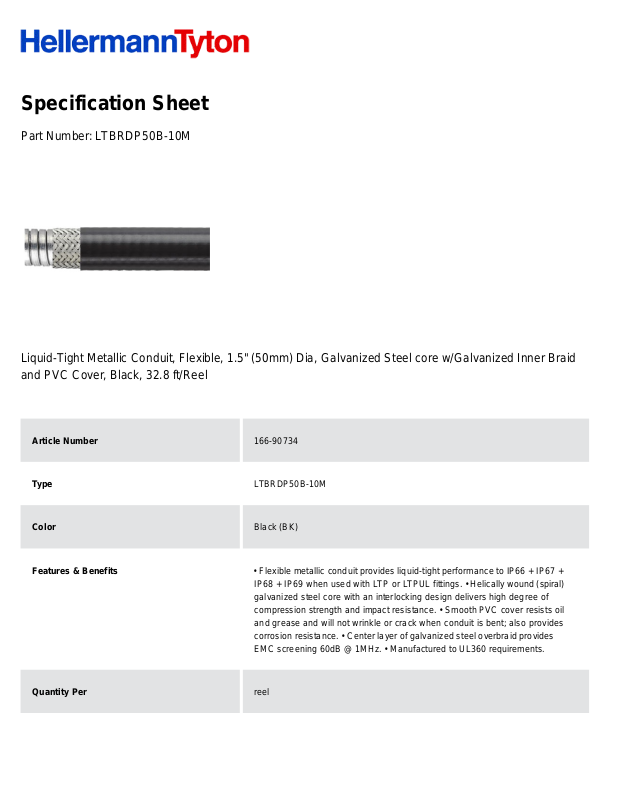

Specification Sheet
Part Number:
LTBRDP50B-10M
Liquid-Tight Metallic Conduit, Flexible, 1.5" (50mm) Dia, Galvanized Steel core w/Galvanized Inner Braid
and PVC Cover, Black, 32.8 ft/Reel
Article Number
166-90734
Type
LTBRDP50B-10M
Color
Black (BK)
Features & Benefits
• Flexible metallic conduit provides liquid-tight performance to IP66 + IP67 +
IP68 + IP69 when used with LTP or LTPUL fittings. • Helically wound (spiral)
galvanized steel core with an interlocking design delivers high degree of
compression strength and impact resistance. • Smooth PVC cover resists oil
and grease and will not wrinkle or crack when conduit is bent; also provides
corrosion resistance. • Center layer of galvanized steel overbraid provides
EMC screening 60dB @ 1MHz. • Manufactured to UL360 requirements.
Quantity Per
reel
Product Description
A flexible, liquid-tight galvanized steel conduit with a smooth, oil-resistant PVC
coating and galvanized steel middle braid. LTBRDP series conduit is designed
for liquid-tight applications where a high degree of corrosion resistance is
required along with EMC screening. Use with HelaGuard LTP or LTPUL series
metallic fittings for IP66 + IP67 + IP68 + IP69 ratings.
Short Description
Liquid-Tight Metallic Conduit, Flexible, 1.5" (50mm) Dia, Galvanized Steel core
w/Galvanized Inner Braid and PVC Cover, Black, 32.8 ft/Reel
Global Part Name
LTBRDP50B-10M-GS/PVC-BK
Technical Description
Manufacturer Reference Number: LTBRDP50B-10M
Length L (Imperial)
32.8
Length L (Metric)
10.0
Diameter D (imperial)
1.59
Diameter D (metric)
40.4
Outside Diameter OD(Imperial)
1.89
Outside Diameter OD(metric)
47.9
Nominal Diameter (Imperial)
1-1/2
Nominal Diameter (Metric)
50.0
Material
Polyvinylchloride (PVC) Galvanised Steel (GS)
Material Shortcut
GS PVC
Flammability
Self-Extinguishing according to EN IEC 61386-1
Halogen free
No
Operating Temperature (Metric)
-4°F to +221°F (-20°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
82
Package Quantity (Metric)
10.0
Weight (Metric)
12.4
Weight (Imperial)
27.3
