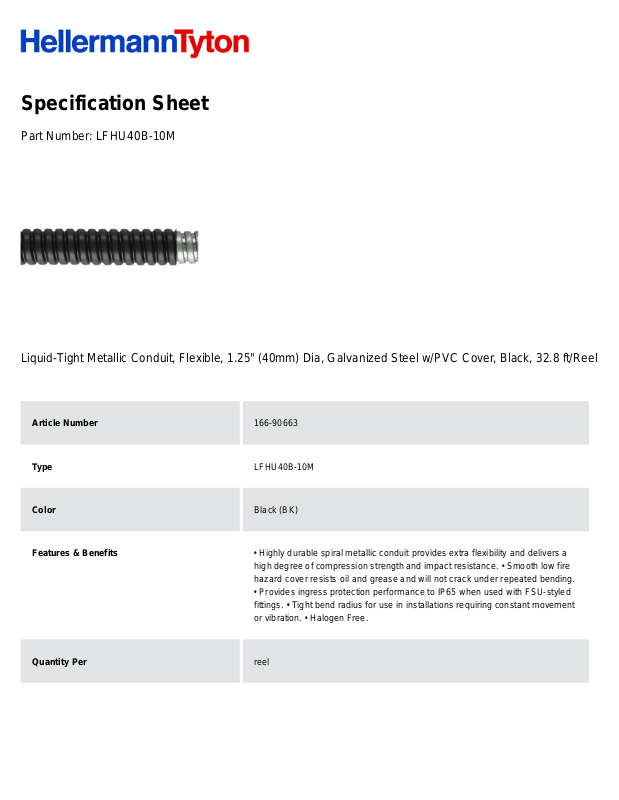

HellermannTyton LFHU40B-10M Specification Sheet

Specification Sheet
Part Number:
LFHU40B-10M
Liquid-Tight Metallic Conduit, Flexible, 1.25" (40mm) Dia, Galvanized Steel w/PVC Cover, Black, 32.8 ft/Reel
166-90663
Type
LFHU40B-10M
Color
Black (BK)
Features & Benefits
• Highly durable spiral metallic conduit provides extra flexibility and delivers a
high degree of compression strength and impact resistance. • Smooth low fire
hazard cover resists oil and grease and will not crack under repeated bending.
• Provides ingress protection performance to IP65 when used with FSU-styled
fittings. • Tight bend radius for use in installations requiring constant movement
or vibration. • Halogen Free.
Quantity Per
reel
Product Description
An extra-flexible, galvanized steel conduit with a smooth oil resistant & low fire
hazard coating. LFHU series is a spiral constructed, non-UL rated metallic
conduit used in applications that demand higher levels of movement, bending
and impact protection. Designed for applications within enclosed areas where
limited smoke, low flame spread and low toxic gas emissions are required. Use
with HelaGuard FSU Metallic Fittings for IP65 ratings.
Short Description
Liquid-Tight Metallic Conduit, Flexible, 1.25" (40mm) Dia, Galvanized Steel
w/PVC Cover, Black, 32.8 ft/Reel
Global Part Name
LFHU40B-10M-GS/PO-BK
Technical Description
Manufacturer Reference Number: LFHU40B-10M
Length L (Imperial)
32.8
Length L (Metric)
10.0
Diameter D (imperial)
1.47
Diameter D (metric)
37.3
Outside Diameter OD(Imperial)
1.74
Outside Diameter OD(metric)
44.2
Nominal Diameter (Imperial)
1-1/4
Nominal Diameter (Metric)
40.0
Material
Galvanised Steel (GS) Polyolefin (PO)
Material Shortcut
PO GS
Flammability
Self-Extinguishing according to EN IEC 61386-1
Halogen free
Yes
Operating Temperature (Metric)
-13°F to +194°F (-25°C to +90°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
32.8
Package Quantity (Metric)
10.0
8.85
Weight (Imperial)
19.5
