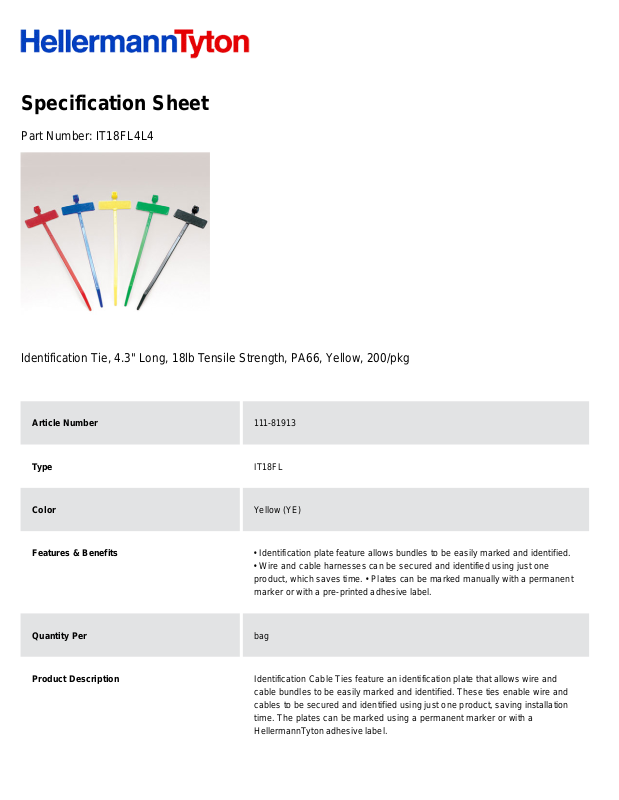

HellermannTyton IT18FL4L4 Specification Sheet

Specification Sheet
Part Number:
IT18FL4L4
Identification Tie, 4.3" Long, 18lb Tensile Strength, PA66, Yellow, 200/pkg
111-81913
Type
IT18FL
Color
Yellow (YE)
Features & Benefits
• Identification plate feature allows bundles to be easily marked and identified.
• Wire and cable harnesses can be secured and identified using just one
product, which saves time. • Plates can be marked manually with a permanent
marker or with a pre-printed adhesive label.
Quantity Per
bag
Product Description
Identification Cable Ties feature an identification plate that allows wire and
cable bundles to be easily marked and identified. These ties enable wire and
cables to be secured and identified using just one product, saving installation
time. The plates can be marked using a permanent marker or with a
HellermannTyton adhesive label.
Short Description
Identification Tie, 4.3" Long, 18lb Tensile Strength, PA66, Yellow, 200/pkg
Global Part Name
IT18FL-PA66-YE
Minimum Tensile Strength (Imperial)
18.0
Minimum Tensile Strength (Metric)
80.0
Length L (Imperial)
4.3
Length L (Metric)
110.0
Fixation Method
Others
Identification Plate Position
stands of bundle
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.81
Width W (Metric)
20.5
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
0.75
Bundle Diameter Max (Metric)
19.0
Height H (Imperial)
0.35
Height H (Metric)
9.0
Outside Diameter Max(Imperial)
0.75
Outside Diameter Min (metric)
1.50
Outside Diameter Min(Imperial)
0.059
Outside Diameter Max (metric)
19.00
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
No
ROHS Complaint
Yes
Certification/Specification WEB
UL
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
200
Package Quantity (Metric)
200
Customs Number
3926909988
