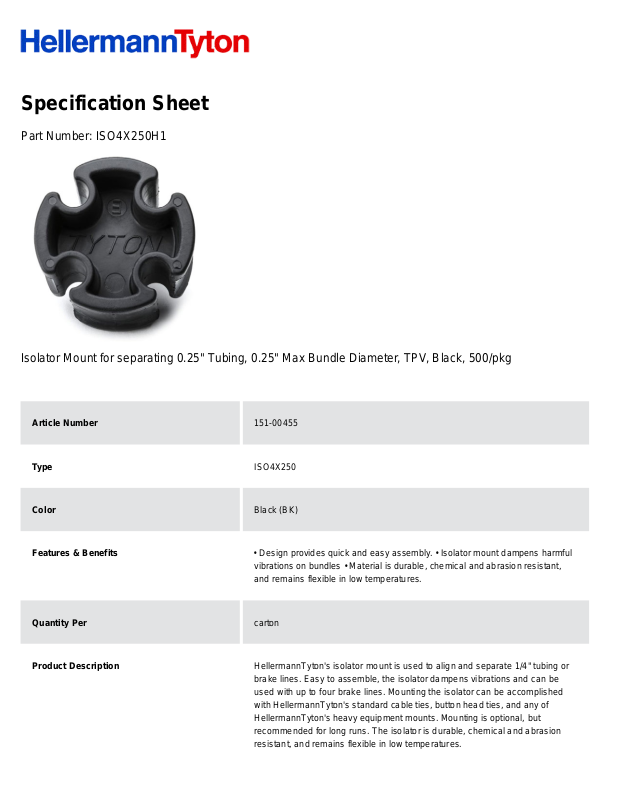

HellermannTyton ISO4X250H1 Specification Sheet

Specification Sheet
Part Number:
ISO4X250H1
Isolator Mount for separating 0.25" Tubing, 0.25" Max Bundle Diameter, TPV, Black, 500/pkg
151-00455
Type
ISO4X250
Color
Black (BK)
Features & Benefits
• Design provides quick and easy assembly. • Isolator mount dampens harmful
vibrations on bundles • Material is durable, chemical and abrasion resistant,
and remains flexible in low temperatures.
Quantity Per
carton
Product Description
HellermannTyton's isolator mount is used to align and separate 1/4" tubing or
brake lines. Easy to assemble, the isolator dampens vibrations and can be
used with up to four brake lines. Mounting the isolator can be accomplished
with HellermannTyton's standard cable ties, button head ties, and any of
HellermannTyton's heavy equipment mounts. Mounting is optional, but
recommended for long runs. The isolator is durable, chemical and abrasion
resistant, and remains flexible in low temperatures.
Short Description
Isolator Mount for separating 0.25" Tubing, 0.25" Max Bundle Diameter, TPV,
Black, 500/pkg
Global Part Name
ISO4X250-TPV-BK
Width W (Imperial)
0.92
Width W (Metric)
23.4
Height H (Imperial)
1.36
Height H (Metric)
34.5
Material
Thermoplastic vulcanized (TPV) rubber
Material Shortcut
TPV
Flammability
UL 94 HB
Operating Temperature (Metric)
-110°F to +347°F (-79°C to +175°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
