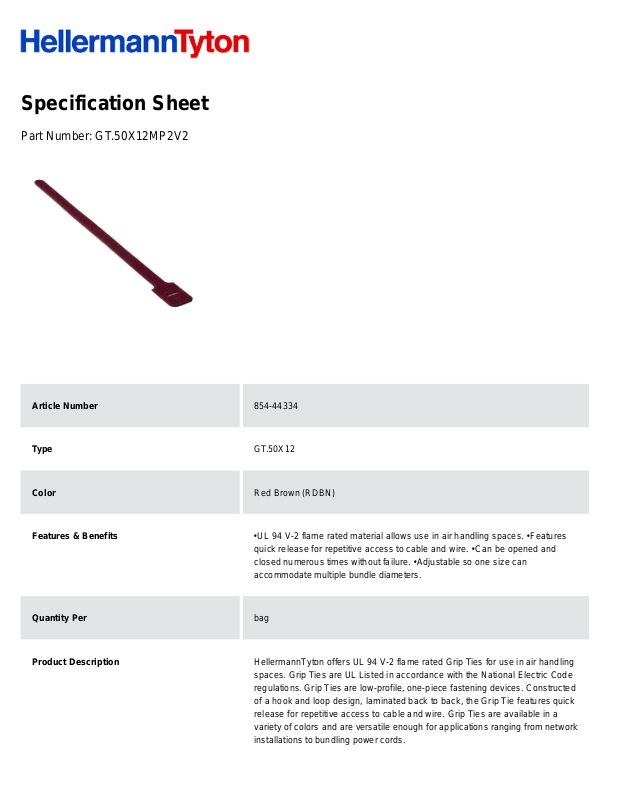

Specification Sheet
Part Number:
GT.50X12MP2V2
Article Number
854-44334
Type
GT.50X12
Color
Red Brown (RDBN)
Features & Benefits
•
UL 94 V-2 flame rated material allows use in air handling spaces. •
Features
quick release for repetitive access to cable and wire. •
Can be opened and
closed numerous times without failure. •
Adjustable so one size can
accommodate multiple bundle diameters.
Quantity Per
bag
Product Description
HellermannTyton offers UL 94 V-2 flame rated Grip Ties for use in air handling
spaces. Grip Ties are UL Listed in accordance with the National Electric Code
regulations. Grip Ties are low-profile, one-piece fastening devices. Constructed
of a hook and loop design, laminated back to back, the Grip Tie features quick
release for repetitive access to cable and wire. Grip Ties are available in a
variety of colors and are versatile enough for applications ranging from network
installations to bundling power cords.
Short Description
Grip Tie, UL94V0-2 Flame Rated, .5" x 12.0", PA6/PP, Maroon, 10/pkg
Global Part Name
GT.50X12
Minimum Tensile Strength (Imperial)
40.0
Minimum Tensile Strength (Metric)
177.93
Length L (Imperial)
12.0
Length L (Metric)
304.8
Width W (Imperial)
0.5
Width W (Metric)
12.7
Bundle Diameter Max (Imperial)
3.18
Bundle Diameter Max (Metric)
80.772
Material
Polyamide 6 (PA6) Polypropylene (PP)
Material Shortcut
PA6 PP
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
