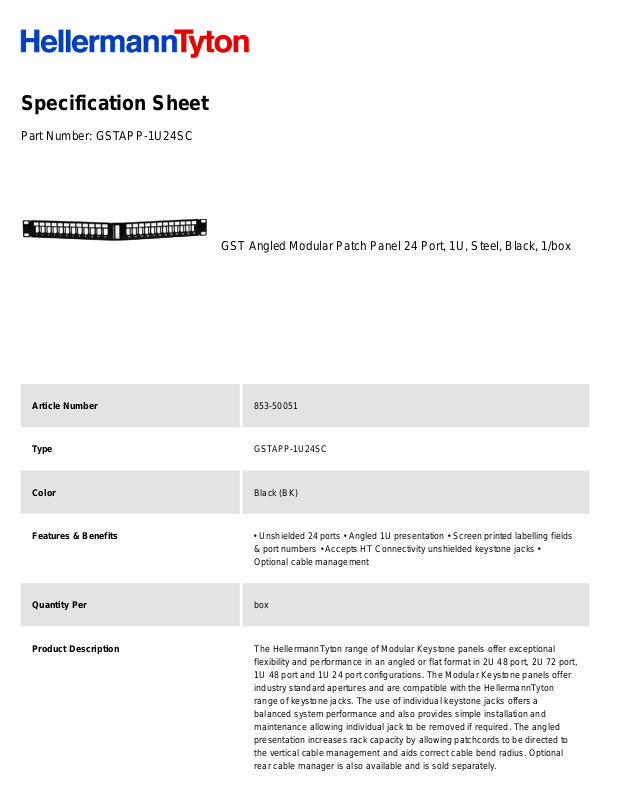

Specification Sheet
Part Number:
GSTAPP-1U24SC
GST Angled Modular Patch Panel 24 Port, 1U, Steel, Black, 1/box
Article Number
853-50051
Type
GSTAPP-1U24SC
Color
Black (BK)
Features & Benefits
• Unshielded 24 ports • Angled 1U presentation • Screen printed labelling fields
& port numbers • Accepts HT Connectivity unshielded keystone jacks •
Optional cable management
Quantity Per
box
Product Description
The HellermannTyton range of Modular Keystone panels offer exceptional
flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port,
1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer
industry standard apertures and are compatible with the HellermannTyton
range of keystone jacks. The use of individual keystone jacks offers a
balanced system performance and also provides simple installation and
maintenance allowing individual jack to be removed if required. The angled
presentation increases rack capacity by allowing patchcords to be directed to
the vertical cable management and aids correct cable bend radius. Optional
rear cable manager is also available and is sold separately.
Short Description
GST Angled Modular Patch Panel 24 Port, 1U, Steel, Black, 1/box
Global Part Name
GSTAPP-1U24SC
Technical Description
The Angled Modular Keystone panel is manufactured from 1.6mm powder
coated mild steel making it rigid and robust. The panel has a matteblack
powder coated finish and is screen printed with port numbers as well as clear
port identification labelling areas for easy user identification. Each U also has a
central labelling field for panel identification.
Port Count
24
Width W (Imperial)
19.02
Width W (Metric)
483
Height H (Imperial)
1.73
Height H (Metric)
44
Depth D (imperial)
4.17
Depth D (metric)
106
UL Listed (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Customs Number
9030400000
