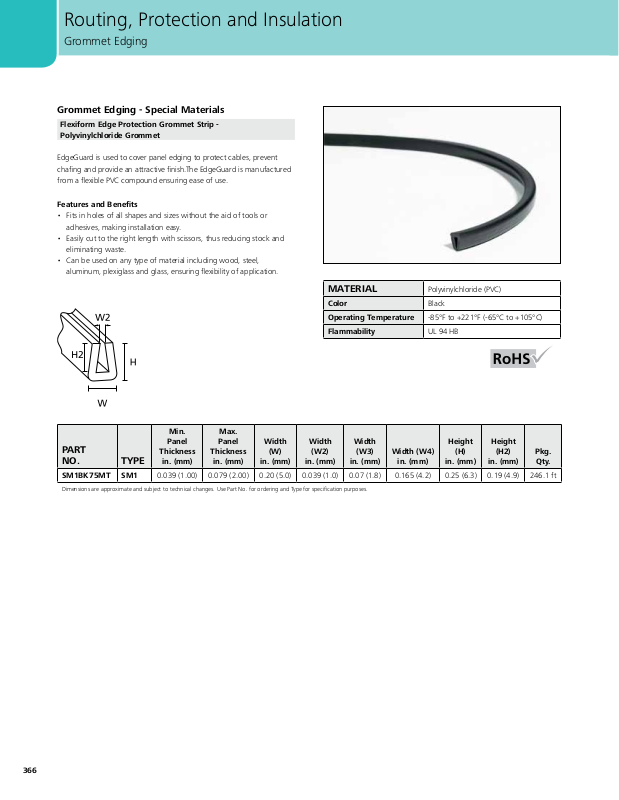

Routing, Protection and Insulation
Grommet Edging
Grommet Edging - Special Materials
Flexiform Edge Protection Grommet Strip -
Polyvinylchloride Grommet
EdgeGuard is used to cover panel edging to protect cables, prevent
chafing and provide an attractive finish.The EdgeGuard is manufactured
from a flexible PVC compound ensuring ease of use.
Features and Benefits
• Fits in holes of all shapes and sizes without the aid of tools or
adhesives, making installation easy.
• Easily cut to the right length with scissors, thus reducing stock and
eliminating waste.
• Can be used on any type of material including wood, steel,
aluminum, plexiglass and glass, ensuring flexibility of application.
MATERIAL
Color Black
Operating Temperature -85°F to +221°F (-65°C to +105°C)
Flammability UL 94 HB
Min.
PART
NO. TYPE
SM1BK75MT SM1 0.039 (1.00) 0.079 (2.00) 0.20 (5.0) 0.039 (1.0) 0.07 (1.8) 0.165 (4.2) 0.25 (6.3) 0.19 (4.9) 246.1 ft
Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
Panel
Thickness
in. (mm)
Max.
Panel
Thickness
in. (mm)
Width
(W)
in. (mm)
Width
(W2)
in. (mm)
Width
(W3)
in. (mm)
Width (W4)
in. (mm)
Polyvinylchloride (PVC)
Height
(H)
in. (mm)
Height
in. (mm)
(H2)
Pkg.
Qty.
366
