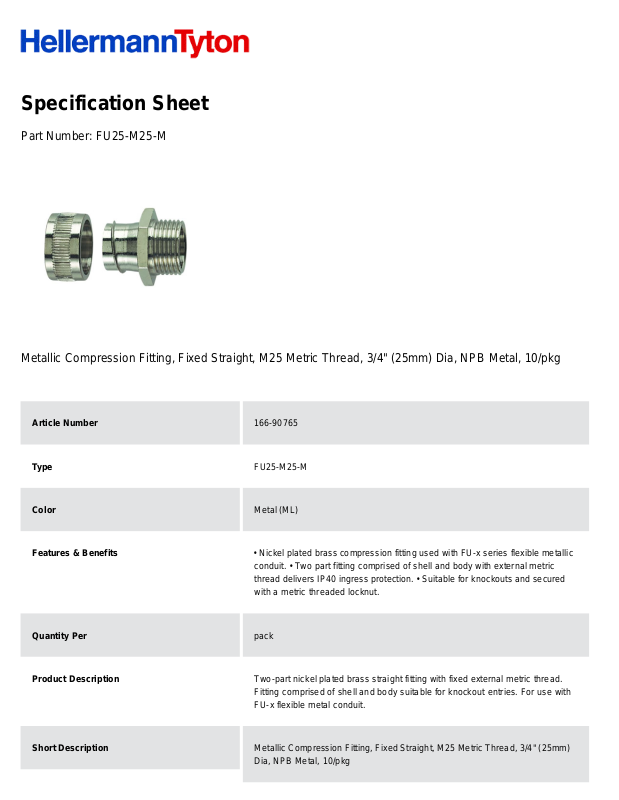

HellermannTyton FU25-M25-M Specification Sheet

Specification Sheet
Part Number:
FU25-M25-M
Metallic Compression Fitting, Fixed Straight, M25 Metric Thread, 3/4" (25mm) Dia, NPB Metal, 10/pkg
166-90765
Type
FU25-M25-M
Color
Metal (ML)
Features & Benefits
• Nickel plated brass compression fitting used with FU-x series flexible metallic
conduit. • Two part fitting comprised of shell and body with external metric
thread delivers IP40 ingress protection. • Suitable for knockouts and secured
with a metric threaded locknut.
Quantity Per
pack
Product Description
Two-part nickel plated brass straight fitting with fixed external metric thread.
Fitting comprised of shell and body suitable for knockout entries. For use with
FU-x flexible metal conduit.
Short Description
Metallic Compression Fitting, Fixed Straight, M25 Metric Thread, 3/4" (25mm)
Dia, NPB Metal, 10/pkg
Global Part Name
FU25-M25-M-NPB-ML
Technical Description
Manufacturer Reference Number: FU25-M25-M
Length L (Imperial)
1.16
Length L (Metric)
29.5
Variant
Straight
Height H (Imperial)
1.14
Height H (Metric)
29.0
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
25.0
Material
Nickel Plated Brass (NPB)
Material Shortcut
NPB
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +572°F (-50°C to +300°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
10
Package Quantity (Metric)
10
Customs Number
7412200000
