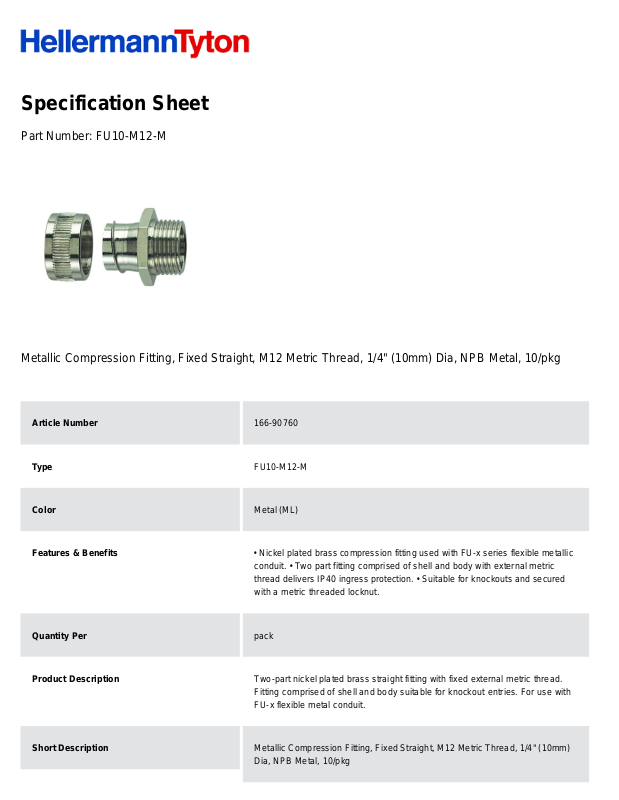

Specification Sheet
Part Number:
FU10-M12-M
Metallic Compression Fitting, Fixed Straight, M12 Metric Thread, 1/4" (10mm) Dia, NPB Metal, 10/pkg
Article Number
166-90760
Type
FU10-M12-M
Color
Metal (ML)
Features & Benefits
• Nickel plated brass compression fitting used with FU-x series flexible metallic
conduit. • Two part fitting comprised of shell and body with external metric
thread delivers IP40 ingress protection. • Suitable for knockouts and secured
with a metric threaded locknut.
Quantity Per
pack
Product Description
Two-part nickel plated brass straight fitting with fixed external metric thread.
Fitting comprised of shell and body suitable for knockout entries. For use with
FU-x flexible metal conduit.
Short Description
Metallic Compression Fitting, Fixed Straight, M12 Metric Thread, 1/4" (10mm)
Dia, NPB Metal, 10/pkg
Global Part Name
FU10-M12-M-NPB-ML
Technical Description
Manufacturer Reference Number: FU10-M12-M
Length L (Imperial)
0.82
Length L (Metric)
21.0
Variant
Straight
Height H (Imperial)
0.51
Height H (Metric)
13.0
Nominal Diameter (Imperial)
1/4
Nominal Diameter (Metric)
10.0
Material
Nickel Plated Brass (NPB)
Material Shortcut
NPB
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +572°F (-50°C to +300°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
