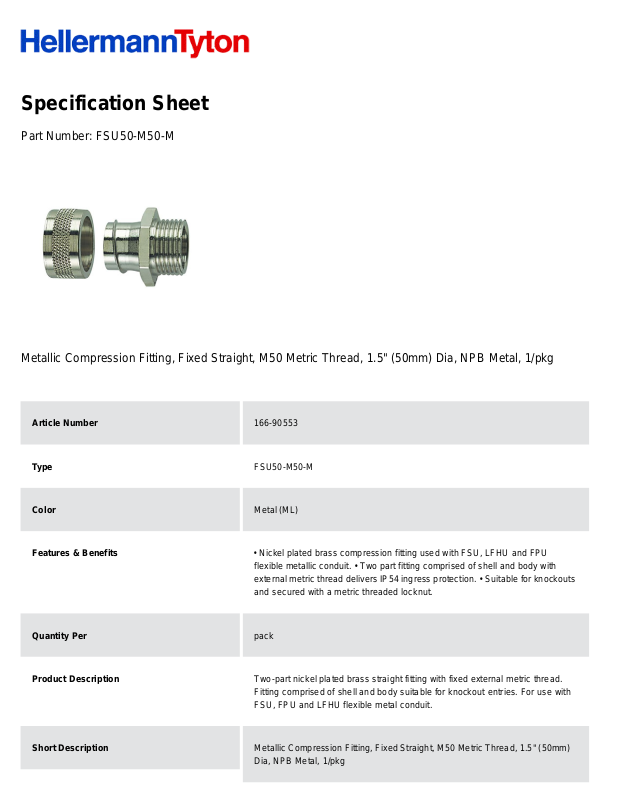

Specification Sheet
Part Number:
FSU50-M50-M
Metallic Compression Fitting, Fixed Straight, M50 Metric Thread, 1.5" (50mm) Dia, NPB Metal, 1/pkg
Article Number
166-90553
Type
FSU50-M50-M
Color
Metal (ML)
Features & Benefits
• Nickel plated brass compression fitting used with FSU, LFHU and FPU
flexible metallic conduit. • Two part fitting comprised of shell and body with
external metric thread delivers IP54 ingress protection. • Suitable for knockouts
and secured with a metric threaded locknut.
Quantity Per
pack
Product Description
Two-part nickel plated brass straight fitting with fixed external metric thread.
Fitting comprised of shell and body suitable for knockout entries. For use with
FSU, FPU and LFHU flexible metal conduit.
Short Description
Metallic Compression Fitting, Fixed Straight, M50 Metric Thread, 1.5" (50mm)
Dia, NPB Metal, 1/pkg
Global Part Name
FSU50-M50-M-NPB-ML
Technical Description
Manufacturer Reference Number: FSU50-M50-M
Length L (Imperial)
1.65
Length L (Metric)
42.0
Variant
Straight
Height H (Imperial)
2.28
Height H (Metric)
58.0
Nominal Diameter (Imperial)
1-1/2
Nominal Diameter (Metric)
50.0
Material
Nickel Plated Brass (NPB)
Material Shortcut
NPB
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +572°F (-50°C to +300°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
