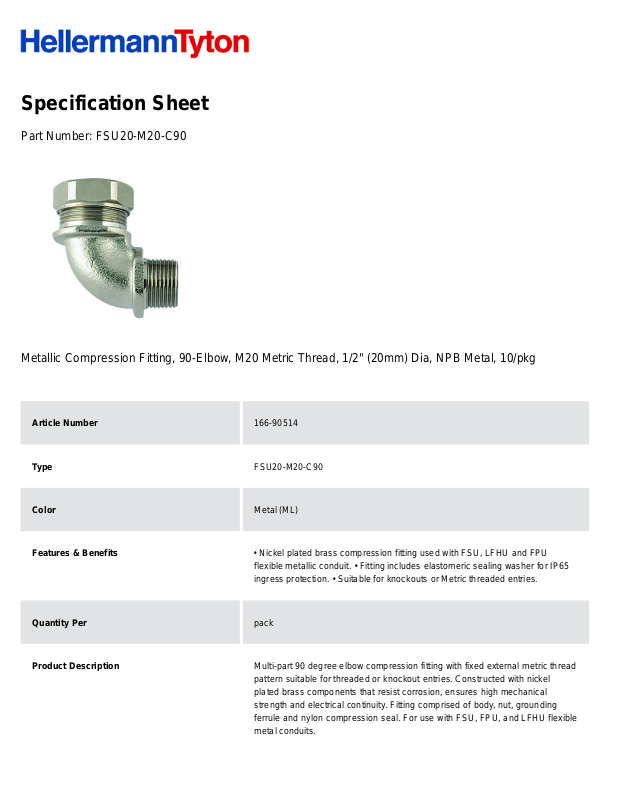

Specification Sheet
Part Number:
FSU20-M20-C90
Metallic Compression Fitting, 90-Elbow, M20 Metric Thread, 1/2" (20mm) Dia, NPB Metal, 10/pkg
Article Number
166-90514
Type
FSU20-M20-C90
Color
Metal (ML)
Features & Benefits
• Nickel plated brass compression fitting used with FSU, LFHU and FPU
flexible metallic conduit. • Fitting includes elastomeric sealing washer for IP65
ingress protection. • Suitable for knockouts or Metric threaded entries.
Quantity Per
pack
Product Description
Multi-part 90 degree elbow compression fitting with fixed external metric thread
pattern suitable for threaded or knockout entries. Constructed with nickel
plated brass components that resist corrosion, ensures high mechanical
strength and electrical continuity. Fitting comprised of body, nut, grounding
ferrule and nylon compression seal. For use with FSU, FPU, and LFHU flexible
metal conduits.
Short Description
Metallic Compression Fitting, 90-Elbow, M20 Metric Thread, 1/2" (20mm) Dia,
NPB Metal, 10/pkg
Global Part Name
FSU20-M20-C90-NPB/PA6-ML
Technical Description
Manufacturer Reference Number: FSU20-M20-C90
Length L (Imperial)
1.65
Length L (Metric)
42.0
Variant
90° Elbow
Height H (Imperial)
1.14
Height H (Metric)
29.0
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
20.0
Material
Nickel Plated Brass (NPB) Polyamide 6 (PA6)
Material Shortcut
NPB PA6
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
