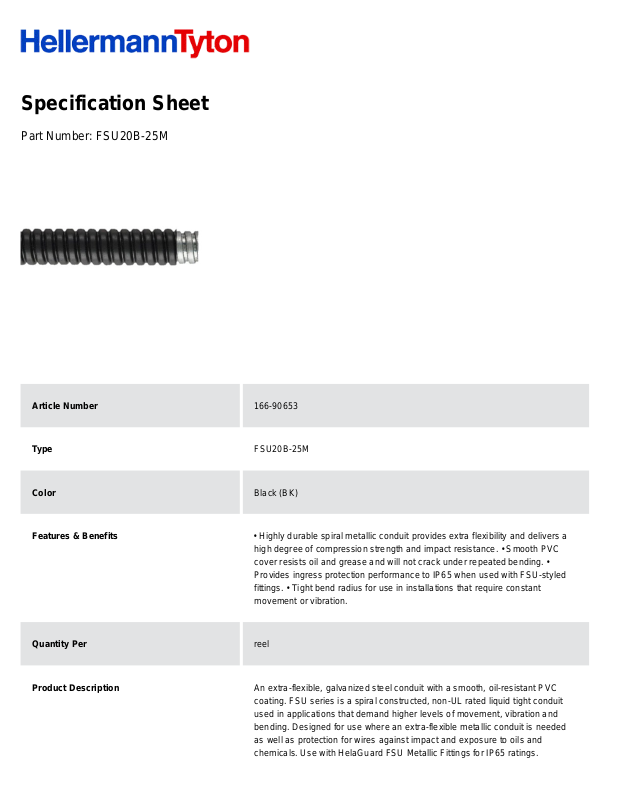

Page 1
Specification Sheet
Part Number:
FSU20B-25M
Article Number
166-90653
Type
FSU20B-25M
Color
Black (BK)
Features & Benefits
• Highly durable spiral metallic conduit provides extra flexibility and delivers a
high degree of compression strength and impact resistance. • Smooth PVC
cover resists oil and grease and will not crack under repeated bending. •
Provides ingress protection performance to IP65 when used with FSU-styled
fittings. • Tight bend radius for use in installations that require constant
movement or vibration.
Quantity Per
reel
Product Description
An extra-flexible, galvanized steel conduit with a smooth, oil-resistant PVC
coating. FSU series is a spiral constructed, non-UL rated liquid tight conduit
used in applications that demand higher levels of movement, vibration and
bending. Designed for use where an extra-flexible metallic conduit is needed
as well as protection for wires against impact and exposure to oils and
chemicals. Use with HelaGuard FSU Metallic Fittings for IP65 ratings.
Page 2
Short Description
HelaGuard Spiral Metallic Conduit, Extra Flexible, 0.50" (20mm) Dia, GS/PVC,
Black, 82ft/Reel
Global Part Name
FSU20B-25M-GS/PVC-BK
Technical Description
Manufacturer Reference Number: FSU20B-25M
Diameter D (imperial)
0.67
Diameter D (metric)
16.9
Outside Diameter OD(Imperial)
0.85
Outside Diameter OD(metric)
21.5
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
20.0
Material
Polyvinylchloride (PVC) Galvanised Steel (GS)
Material Shortcut
PVC GS
Flammability
Self-Extinguishing according to EN IEC 61386-1
Halogen free
No
Operating Temperature (Metric)
+5°F to +158°F (-15°C to +70°C)
Reach Complaint(Article 33)
Yes
Page 3
ROHS Complaint
Yes
Package Quantity(Imperial)
82.0
Package Quantity (Metric)
25.0
Customs Number
8307100000
Weight (Metric)
10.18
Weight (Imperial)
22.4
