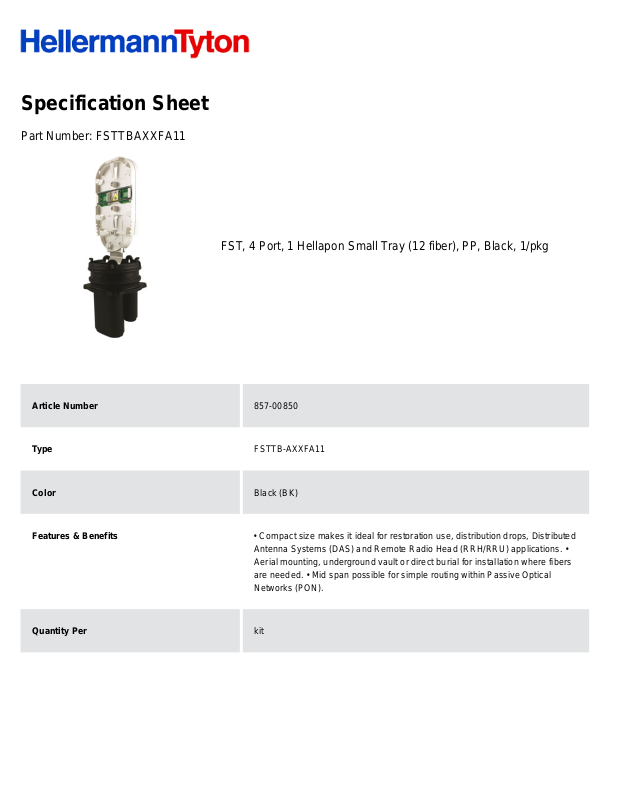

Specification Sheet
Part Number:
FSTTBAXXFA11
FST, 4 Port, 1 Hellapon Small Tray (12 fiber), PP, Black, 1/pkg
Article Number
857-00850
Type
FSTTB-AXXFA11
Color
Black (BK)
Features & Benefits
• Compact size makes it ideal for restoration use, distribution drops, Distributed
Antenna Systems (DAS) and Remote Radio Head (RRH/RRU) applications. •
Aerial mounting, underground vault or direct burial for installation where fibers
are needed. • Mid span possible for simple routing within Passive Optical
Networks (PON).
Quantity Per
kit
Product Description
The FST is a compact, cap-ended, ready-access, fiber-optic splice closure for
use in aerial, underground and directly buried installations. Its small size, port
flexibility and value make the FST popular for splicing low fiber count
distribution cables in FTTH, FTTC, trunk and campus networks, as well as
CATV and CCTV installations. The 4-port base configuration offers three round
ports and one oval port for loop-through applications. Cover is environmentally
sealed to the base using a rolling O-ring. Cable entry/exit points in the base
are environmentally sealed using either Cablelok mechanical seals or
heat-shrink sleeves.
Short Description
FST, 4 Port, 1 Hellapon Small Tray (12 fiber), PP, Black, 1/pkg
Global Part Name
FSTTB-AXXFA11
Technical Description
The FST 4 Port closure is supplied with a Polypropylene base. The base
configuration of 3 round ports and 1 oval port covers a cable diameter range of
4.0 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when
using heatshrink. The mounting system is manufactured from Grade 304
stainless steel and can accommodate a maximum of 2 Hellapon small trays or
1 Hellapon small tray and basket giving a maximum of 24 fibre splices based
on 12 fibres per tray. The fibre basket provides storage space for the storage
of fibre loops within the closure. The tubed closure and the position of the
mounting system allows for ease of access and traceability of the fibre on to
the trays. The trays are white which makes it easy to see the colour of the
fibre elements as they are routed through the fibre management system and
on to the trays.
Port Count
3 1
Variant
Outdoor Enclosure
Material
Polypropylene (PP)
Material Shortcut
PP
