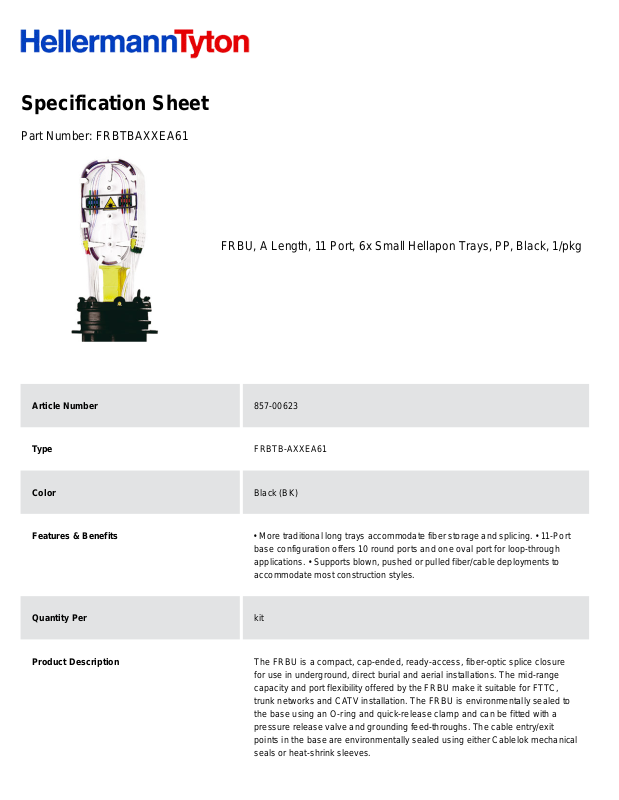

Specification Sheet
Part Number:
FRBTBAXXEA61
FRBU, A Length, 11 Port, 6x Small Hellapon Trays, PP, Black, 1/pkg
Article Number
857-00623
Type
FRBTB-AXXEA61
Color
Black (BK)
Features & Benefits
• More traditional long trays accommodate fiber storage and splicing. • 11-Port
base configuration offers 10 round ports and one oval port for loop-through
applications. • Supports blown, pushed or pulled fiber/cable deployments to
accommodate most construction styles.
Quantity Per
kit
Product Description
The FRBU is a compact, cap-ended, ready-access, fiber-optic splice closure
for use in underground, direct burial and aerial installations. The mid-range
capacity and port flexibility offered by the FRBU make it suitable for FTTC,
trunk networks and CATV installation. The FRBU is environmentally sealed to
the base using an O-ring and quick-release clamp and can be fitted with a
pressure release valve and grounding feed-throughs. The cable entry/exit
points in the base are environmentally sealed using either Cablelok mechanical
seals or heat-shrink sleeves.
Short Description
FRBU, A Length, 11 Port, 6x Small Hellapon Trays, PP, Black, 1/pkg
Global Part Name
FRBTB-AXXEA61
Technical Description
The FRBU 11 Port A length closure is supplied with a Polypropylene base. The
base configuration of 10 round ports and 1 oval port covers a cable diameter
range of 1.7 – 16.5mm when using Cablelok mechanical seals and 6.0 –
22.0mm when using heatshrink. The mounting system is manufactured from
Grade 304 stainless steel and can accommodate a maximum of 6 Hellapon
medium stacked or 6 Hellapon small trays giving a maximum of 72 fibre
splices based on 12 fibres per tray. The tubed closure and the position of the
mounting system allows for ease of access and traceability of the fibre on to
the trays. The trays are white which makes it easy to see the colour of the
fibre elements as they are routed through the fibre management system and
on to the trays.
Port Count
11
Variant
Outdoor Enclosure
Material
Polypropylene (PP)
Material Shortcut
PP
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
