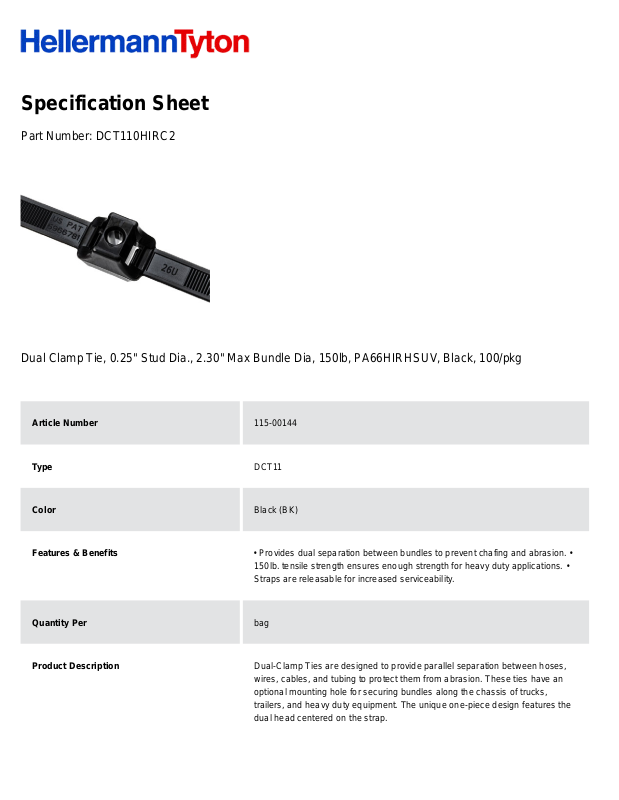

Specification Sheet
Part Number:
DCT110HIRC2
Dual Clamp Tie, 0.25" Stud Dia., 2.30" Max Bundle Dia, 150lb, PA66HIRHSUV, Black, 100/pkg
Article Number
115-00144
Type
DCT11
Color
Black (BK)
Features & Benefits
• Provides dual separation between bundles to prevent chafing and abrasion. •
150lb. tensile strength ensures enough strength for heavy duty applications. •
Straps are releasable for increased serviceability.
Quantity Per
bag
Product Description
Dual-Clamp Ties are designed to provide parallel separation between hoses,
wires, cables, and tubing to protect them from abrasion. These ties have an
optional mounting hole for securing bundles along the chassis of trucks,
trailers, and heavy duty equipment. The unique one-piece design features the
dual head centered on the strap.
Short Description
Dual Clamp Tie, 0.25" Stud Dia., 2.30" Max Bundle Dia, 150lb, PA66HIRHSUV,
Black, 100/pkg
Global Part Name
DCT11-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
150.0
Minimum Tensile Strength (Metric)
667.0
Length L (Imperial)
19.2
Length L (Metric)
487.68
Fixation Method
Weld Stud Fixing
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.50
Width W (Metric)
12.7
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
6.4
Bundle Diameter Max (Imperial)
2.3
