Page 1

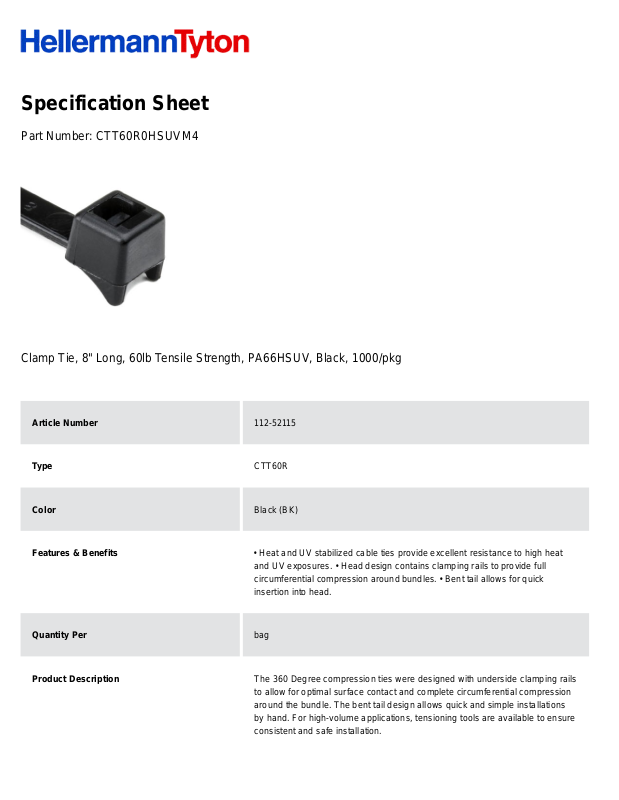

Specification Sheet
Part Number:
CTT60R0HSUVM4
Clamp Tie, 8" Long, 60lb Tensile Strength, PA66HSUV, Black, 1000/pkg
Article Number
112-52115
Type
CTT60R
Color
Black (BK)
Features & Benefits
• Heat and UV stabilized cable ties provide excellent resistance to high heat
and UV exposures. • Head design contains clamping rails to provide full
circumferential compression around bundles. • Bent tail allows for quick
insertion into head.
Quantity Per
bag
Product Description
The 360 Degree compression ties were designed with underside clamping rails
to allow for optimal surface contact and complete circumferential compression
around the bundle. The bent tail design allows quick and simple installations
by hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Page 2
Short Description
Clamp Tie, 8" Long, 60lb Tensile Strength, PA66HSUV, Black, 1000/pkg
Global Part Name
CTT60R-PA66HSUV-BK
Minimum Tensile Strength (Imperial)
60.0
Minimum Tensile Strength (Metric)
265.0
Length L (Imperial)
8.0
Length L (Metric)
203.2
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.19
Width W (Metric)
4.7
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.8
Bundle Diameter Max (Metric)
45.0
Thickness T (Metric)
1.2
Page 3
Material
Polyamide 6.6 heat and UV stabilized (PA66HSUV)
Material Shortcut
PA66HSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
Weight (Metric)
0.0012
Weight (Imperial)
0.0027
