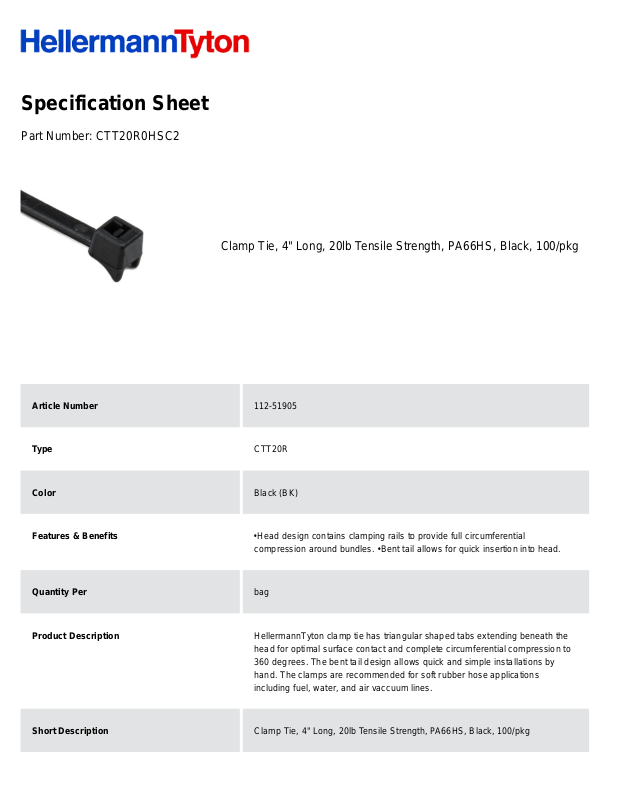

Page 1
Specification Sheet
Part Number:
CTT20R0HSC2
Clamp Tie, 4" Long, 20lb Tensile Strength, PA66HS, Black, 100/pkg
Article Number
112-51905
Type
CTT20R
Color
Black (BK)
Features & Benefits
•
Head design contains clamping rails to provide full circumferential
compression around bundles. •
Bent tail allows for quick insertion into head.
Quantity Per
bag
Product Description
HellermannTyton clamp tie has triangular shaped tabs extending beneath the
head for optimal surface contact and complete circumferential compression to
360 degrees. The bent tail design allows quick and simple installations by
hand. The clamps are recommended for soft rubber hose applications
including fuel, water, and air vaccuum lines.
Short Description
Clamp Tie, 4" Long, 20lb Tensile Strength, PA66HS, Black, 100/pkg
Page 2
Global Part Name
CTT20R-PA66HS-BK
Minimum Tensile Strength (Imperial)
20.0
Minimum Tensile Strength (Metric)
90.0
Length L (Imperial)
4.0
Length L (Metric)
101.6
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.1
Width W (Metric)
2.5
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
0.51
Bundle Diameter Max (Metric)
13.0
Page 3
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Weight (Metric)
0.0003
Weight (Imperial)
0.0007
