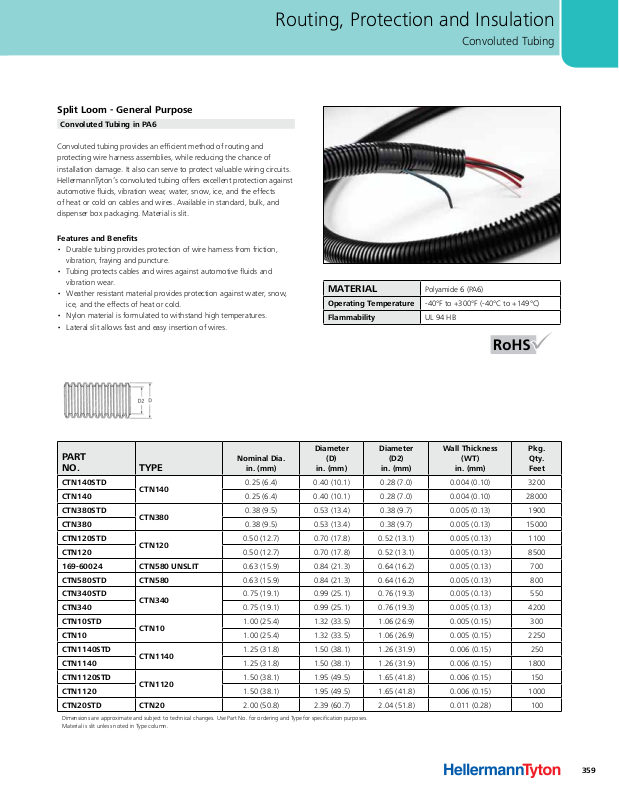

Routing, Protection and Insulation
Split Loom - General Purpose
Convoluted Tubing in PA6
Convoluted tubing provides an ecient method of routing and
protecting wire harness assemblies, while reducing the chance of
installation damage. It also can serve to protect valuable wiring circuits.
HellermannTyton’s convoluted tubing offers excellent protection against
automotive fluids, vibration wear, water, snow, ice, and the effects
of heat or cold on cables and wires. Available in standard, bulk, and
dispenser box packaging. Material is slit.
Features and Benefits
• Durable tubing provides protection of wire harness from friction,
vibration, fraying and puncture.
• Tubing protects cables and wires against automotive fluids and
vibration wear.
• Weather resistant material provides protection against water, snow,
ice, and the effects of heat or cold.
• Nylon material is formulated to withstand high temperatures.
• Lateral slit allows fast and easy insertion of wires.
Convoluted Tubing
MATERIAL
Operating Temperature -40°F to +300°F (-40°C to +149°C)
Flammability UL 94 HB
Polyamide 6 (PA6)
PART
NO. TYPE
CTN140STD
CTN140 0.25 (6.4) 0.40 (10.1) 0.28 (7.0) 0.004 (0.10) 28000
CTN380STD
CTN380 0.38 (9.5) 0.53 (13.4) 0.38 (9.7) 0.005 (0.13) 15000
CTN120STD
CTN120 0.50 (12.7) 0.70 (17.8) 0.52 (13.1) 0.005 (0.13) 8500
169-60024 CTN580 UNSLIT 0.63 (15.9) 0.84 (21.3) 0.64 (16.2) 0.005 (0.13) 700
CTN580STD CTN580 0.63 (15.9) 0.84 (21.3) 0.64 (16.2) 0.005 (0.13) 800
CTN340STD
CTN340 0.75 (19.1) 0.99 (25.1) 0.76 (19.3) 0.005 (0.13) 4200
CTN10STD
CTN10 1.00 (25.4) 1.32 (33.5) 1.06 (26.9) 0.005 (0.15) 2250
CTN1140STD
CTN1140 1.25 (31.8) 1.50 (38.1) 1.26 (31.9) 0.006 (0.15) 1800
CTN1120STD
CTN1120 1.50 (38.1) 1.95 (49.5) 1.65 (41.8) 0.006 (0.15) 1000
CTN20STD CTN20 2.00 (50.8) 2.39 (60.7) 2.04 (51.8) 0.011 (0.28) 100
Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
Material is slit unless noted in Type column.
CTN140
CTN380
CTN120
CTN340
CTN10
CTN1140
CTN1120
Nominal Dia.
in. (mm)
0.25 (6.4) 0.40 (10.1) 0.28 (7.0) 0.004 (0.10) 3200
0.38 (9.5) 0.53 (13.4) 0.38 (9.7) 0.005 (0.13) 1900
0.50 (12.7) 0.70 (17.8) 0.52 (13.1) 0.005 (0.13) 1100
0.75 (19.1) 0.99 (25.1) 0.76 (19.3) 0.005 (0.13) 550
1.00 (25.4) 1.32 (33.5) 1.06 (26.9) 0.005 (0.15) 300
1.25 (31.8) 1.50 (38.1) 1.26 (31.9) 0.006 (0.15) 250
1.50 (38.1) 1.95 (49.5) 1.65 (41.8) 0.006 (0.15) 150
Diameter
(D)
in. (mm)
Diameter
(D2)
in. (mm)
Wall Thickness
(WT)
in. (mm)
Pkg.
Qty.
Feet
359
