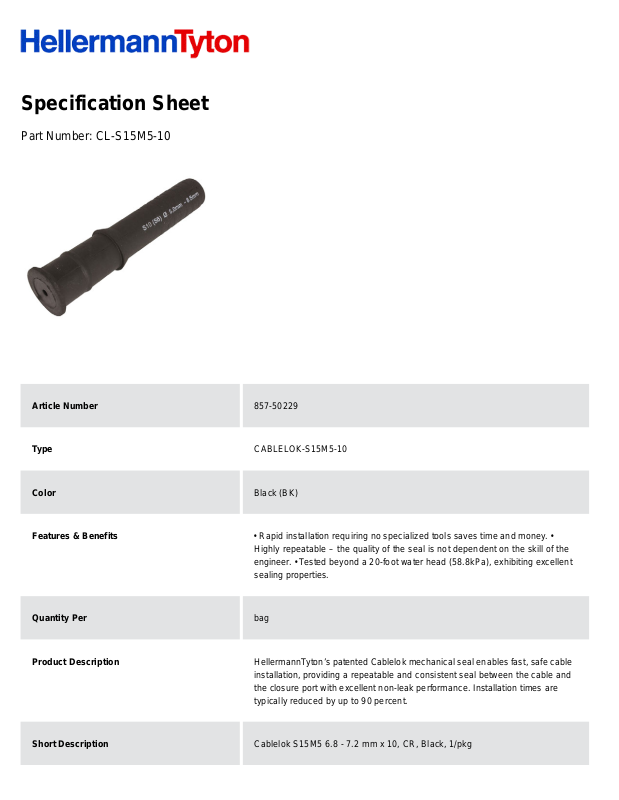

Specification Sheet
Part Number:
CL-S15M5-10
Article Number
857-50229
Type
CABLELOK-S15M5-10
Color
Black (BK)
Features & Benefits
• Rapid installation requiring no specialized tools saves time and money. •
Highly repeatable – the quality of the seal is not dependent on the skill of the
engineer. • Tested beyond a 20-foot water head (58.8kPa), exhibiting excellent
sealing properties.
Quantity Per
bag
Product Description
HellermannTyton’s patented Cablelok mechanical seal enables fast, safe cable
installation, providing a repeatable and consistent seal between the cable and
the closure port with excellent non-leak performance. Installation times are
typically reduced by up to 90 percent.
Short Description
Cablelok S15M5 6.8 - 7.2 mm x 10, CR, Black, 1/pkg
Global Part Name
CABLELOK-S15M5-10
Technical Description
The S Port Multi-Drop Cablelok is a meachnical seal manufactured from
Polychloropene. This cablelok fits in to a single S Port on the HellermannTyton
closures converting it from a single cable drop port to a 5 cable drop port for
cables with a diameter range of 6.8mm - 7.2mm
Port Count
5
Material
Chloroprene Rubber (CR)
Material Shortcut
CR
Package Quantity(Imperial)
10
Package Quantity (Metric)
10
Customs Number
9030400000
