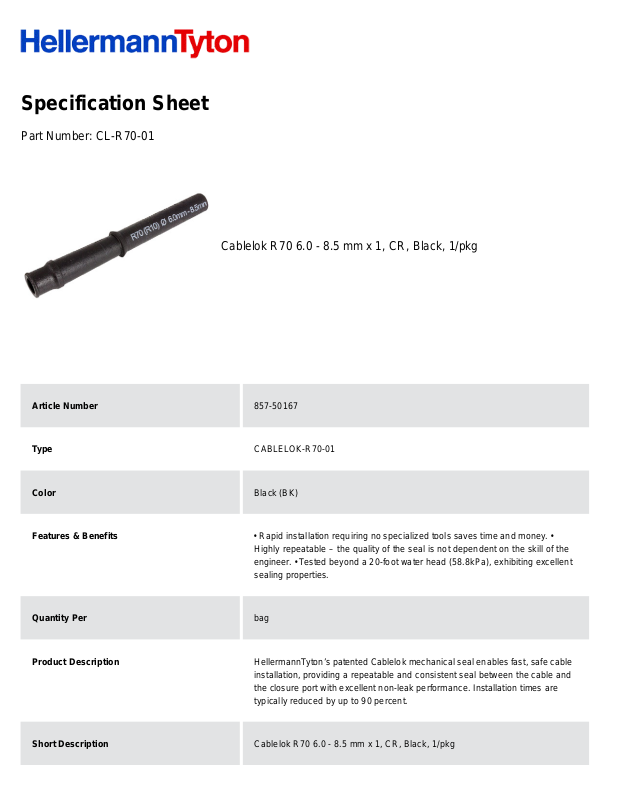

Specification Sheet
Part Number:
CL-R70-01
Cablelok R70 6.0 - 8.5 mm x 1, CR, Black, 1/pkg
Article Number
857-50167
Type
CABLELOK-R70-01
Color
Black (BK)
Features & Benefits
• Rapid installation requiring no specialized tools saves time and money. •
Highly repeatable – the quality of the seal is not dependent on the skill of the
engineer. • Tested beyond a 20-foot water head (58.8kPa), exhibiting excellent
sealing properties.
Quantity Per
bag
Product Description
HellermannTyton’s patented Cablelok mechanical seal enables fast, safe cable
installation, providing a repeatable and consistent seal between the cable and
the closure port with excellent non-leak performance. Installation times are
typically reduced by up to 90 percent.
Short Description
Cablelok R70 6.0 - 8.5 mm x 1, CR, Black, 1/pkg
Global Part Name
CABLELOK-R70-01
Technical Description
The R Port Cablelok is a mechanical seal manufactured from external grade
flexible polychloroprene. There are 11 Cablelok's which cover a cable range of
1.7mm – 9.5mm including three multi-hole versions to allow two cable drops
from the same port and a port plug for blocking unused R sized drop ports.
Port Count
1
Variant
Round - R
Material
Chloroprene Rubber (CR)
Material Shortcut
CR
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Customs Number
9030400000
Content Unit(BMEcat)
pcs.
