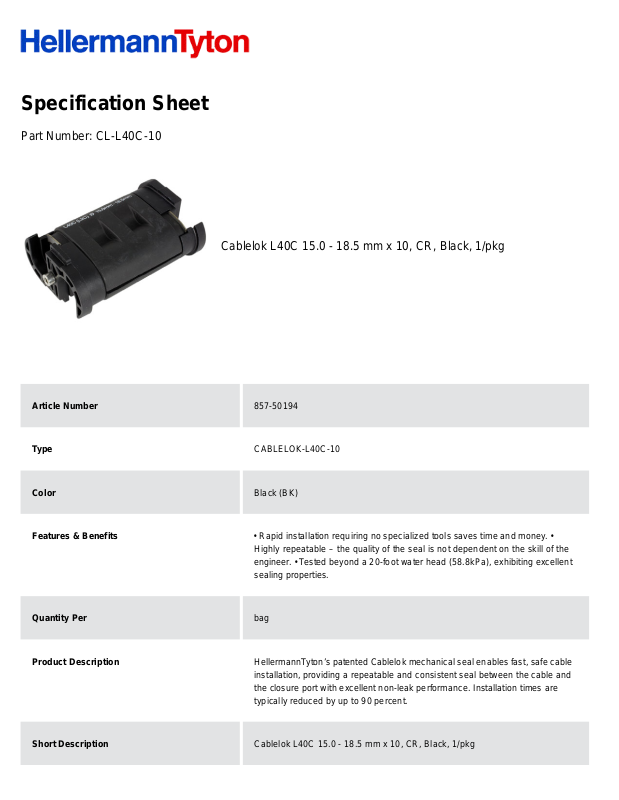

Specification Sheet
Part Number:
CL-L40C-10
Cablelok L40C 15.0 - 18.5 mm x 10, CR, Black, 1/pkg
Article Number
857-50194
Type
CABLELOK-L40C-10
Color
Black (BK)
Features & Benefits
• Rapid installation requiring no specialized tools saves time and money. •
Highly repeatable – the quality of the seal is not dependent on the skill of the
engineer. • Tested beyond a 20-foot water head (58.8kPa), exhibiting excellent
sealing properties.
Quantity Per
bag
Product Description
HellermannTyton’s patented Cablelok mechanical seal enables fast, safe cable
installation, providing a repeatable and consistent seal between the cable and
the closure port with excellent non-leak performance. Installation times are
typically reduced by up to 90 percent.
Short Description
Cablelok L40C 15.0 - 18.5 mm x 10, CR, Black, 1/pkg
Global Part Name
CABLELOK-L40C-10
Technical Description
The L Port Cablelok is a mechanical seal manufactured from Neoprene rubber,
Minlon and Acetal. There are 6 Cablelok's which cover a cable range of 5.5mm
– 20.0mm five of which have a dual outlet for loop through applications, the
sixth being a port plug for blocking unused L sized drop ports.
Port Count
2
Variant
Oval - L
Material
Chloroprene Rubber (CR)
Material Shortcut
CR
Package Quantity(Imperial)
10
Package Quantity (Metric)
10
Customs Number
9030400000
Content Unit(BMEcat)
pcs.
