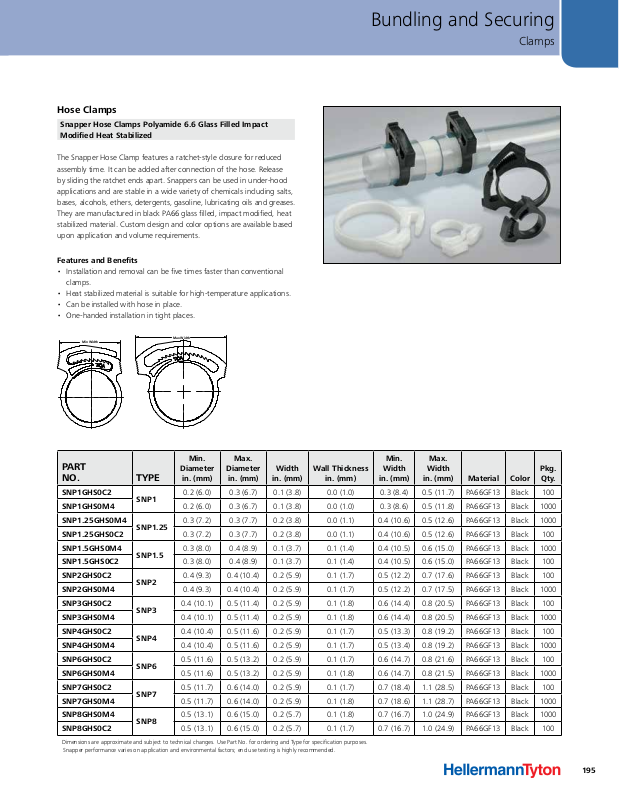

Hose Clamps
Min Width
Max Width
Snapper Hose Clamps Polyamide 6.6 Glass Filled Impact
Modified Heat Stabilized
The Snapper Hose Clamp features a ratchet-style closure for reduced
assembly time. It can be added after connection of the hose. Release
by sliding the ratchet ends apart. Snappers can be used in under-hood
applications and are stable in a wide variety of chemicals including salts,
bases, alcohols, ethers, detergents, gasoline, lubricating oils and greases.
They are manufactured in black PA66 glass filled, impact modified, heat
stabilized material. Custom design and color options are available based
upon application and volume requirements.
Features and Benefits
• Installation and removal can be five times faster than conventional
clamps.
• Heat stabilized material is suitable for high-temperature applications.
• Can be installed with hose in place.
• One-handed installation in tight places.
Bundling and Securing
Clamps
PART
NO. TYPE
SNP1GHS0C2
SNP1GHS0M4 0.2 (6.0) 0.3 (6.7) 0.1 (3.8) 0.0 (1.0) 0.3 (8.6) 0.5 (11.8) PA66GF13 Black 1000
SNP1.25GHS0M4
SNP1.25GHS0C2 0.3 (7.2) 0.3 (7.7) 0.2 (3.8) 0.0 (1.1) 0.4 (10.6) 0.5 (12.6) PA66GF13 Black 100
SNP1.5GHS0M4
SNP1.5GHS0C2 0.3 (8.0) 0.4 (8.9) 0.1 (3.7) 0.1 (1.4) 0.4 (10.5) 0.6 (15.0) PA66GF13 Black 100
SNP2GHS0C2
SNP2GHS0M4 0.4 (9.3) 0.4 (10.4) 0.2 (5.9) 0.1 (1.7) 0.5 (12.2) 0.7 (17.5) PA66GF13 Black 1000
SNP3GHS0C2
SNP3GHS0M4 0.4 (10.1) 0.5 (11.4) 0.2 (5.9) 0.1 (1.8) 0.6 (14.4) 0.8 (20.5) PA66GF13 Black 1000
SNP4GHS0C2
SNP4GHS0M4 0.4 (10.4) 0.5 (11.6) 0.2 (5.9) 0.1 (1.7) 0.5 (13.4) 0.8 (19.2) PA66GF13 Black 1000
SNP6GHS0C2
SNP6GHS0M4 0.5 (11.6) 0.5 (13.2) 0.2 (5.9) 0.1 (1.8) 0.6 (14.7) 0.8 (21.5) PA66GF13 Black 1000
SNP7GHS0C2
SNP7GHS0M4 0.5 (11.7) 0.6 (14.0) 0.2 (5.9) 0.1 (1.8) 0.7 (18.6) 1.1 (28.7) PA66GF13 Black 1000
SNP8GHS0M4
SNP8GHS0C2 0.5 (13.1) 0.6 (15.0) 0.2 (5.7) 0.1 (1.7) 0.7 (16.7) 1.0 (24.9) PA66GF13 Black 100
Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
Snapper performance varies on application and environmental factors; end use testing is highly recommended.
SNP1
SNP1.25
SNP1.5
SNP2
SNP3
SNP4
SNP6
SNP7
SNP8
Min.
Diameter
in. (mm)
0.2 (6.0) 0.3 (6.7) 0.1 (3.8) 0.0 (1.0) 0.3 (8.4) 0.5 (11.7) PA66GF13 Black 100
0.3 (7.2) 0.3 (7.7) 0.2 (3.8) 0.0 (1.1) 0.4 (10.6) 0.5 (12.6) PA66GF13 Black 1000
0.3 (8.0) 0.4 (8.9) 0.1 (3.7) 0.1 (1.4) 0.4 (10.5) 0.6 (15.0) PA66GF13 Black 1000
0.4 (9.3) 0.4 (10.4) 0.2 (5.9) 0.1 (1.7) 0.5 (12.2) 0.7 (17.6) PA66GF13 Black 100
0.4 (10.1) 0.5 (11.4) 0.2 (5.9) 0.1 (1.8) 0.6 (14.4) 0.8 (20.5) PA66GF13 Black 100
0.4 (10.4) 0.5 (11.6) 0.2 (5.9) 0.1 (1.7) 0.5 (13.3) 0.8 (19.2) PA66GF13 Black 100
0.5 (11.6) 0.5 (13.2) 0.2 (5.9) 0.1 (1.7) 0.6 (14.7) 0.8 (21.6) PA66GF13 Black 100
0.5 (11.7) 0.6 (14.0) 0.2 (5.9) 0.1 (1.7) 0.7 (18.4) 1.1 (28.5) PA66GF13 Black 100
0.5 (13.1) 0.6 (15.0) 0.2 (5.7) 0.1 (1.8) 0.7 (16.7) 1.0 (24.9) PA66GF13 Black 1000
Max.
Diameter
in. (mm)
Width
in. (mm)
Wall Thickness
in. (mm)
Min.
Width
in. (mm)
Max.
Width
in. (mm) Material Color
Pkg.
Qty.
195
