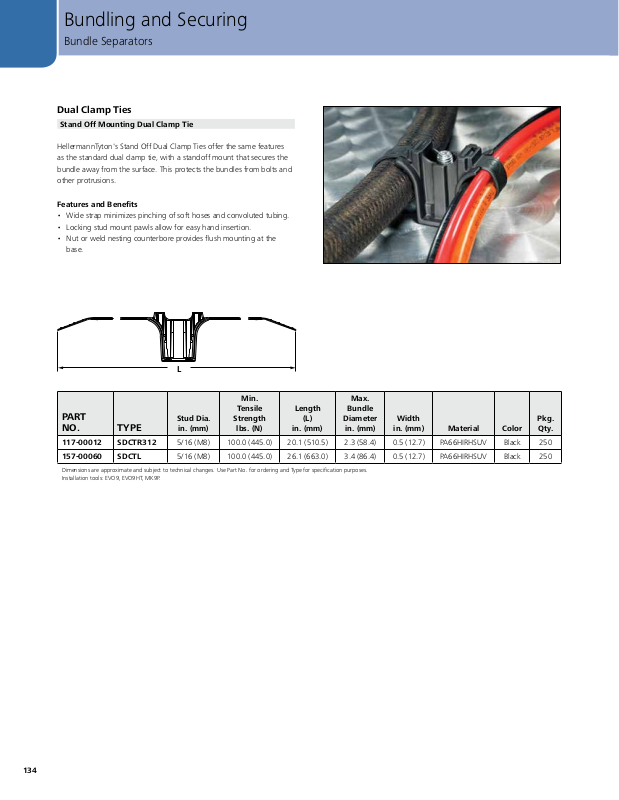

Bundling and Securing
L
Bundle Separators
Dual Clamp Ties
Stand Off Mounting Dual Clamp Tie
HellermannTyton's Stand Off Dual Clamp Ties offer the same features
as the standard dual clamp tie, with a standoff mount that secures the
bundle away from the surface. This protects the bundles from bolts and
other protrusions.
Features and Benefits
• Wide strap minimizes pinching of soft hoses and convoluted tubing.
• Locking stud mount pawls allow for easy hand insertion.
• Nut or weld nesting counterbore provides flush mounting at the
base.
Min.
PART
NO. TYPE
117-00012 SDCTR312 5/16 (M8) 100.0 (445.0) 20.1 (510.5) 2.3 (58.4) 0.5 (12.7) PA66HIRHSUV Black 250
157-00060 SDCTL 5/16 (M8) 100.0 (445.0) 26.1 (663.0) 3.4 (86.4) 0.5 (12.7) PA66HIRHSUV Black 250
Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
Installation tools: EVO9, EVO9HT, MK9P.
Stud Dia.
in. (mm)
Tensile
Strength
lbs. (N)
Length
(L)
in. (mm)
Max.
Bundle
Diameter
in. (mm)
Width
in. (mm) Material Color
Pkg.
Qty.
134
