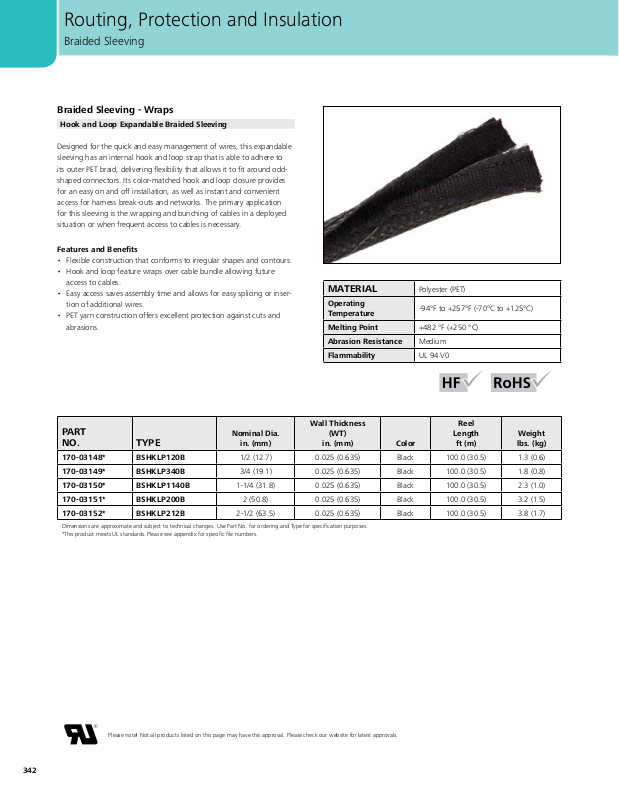

Routing, Protection and Insulation
Braided Sleeving
Braided Sleeving - Wraps
Hook and Loop Expandable Braided Sleeving
Designed for the quick and easy management of wires, this expandable
sleeving has an internal hook and loop strap that is able to adhere to
its outer PET braid, delivering flexibility that allows it to fit around oddshaped connectors. Its color-matched hook and loop closure provides
for an easy on and off installation, as well as instant and convenient
access for harness break-outs and networks. The primary application
for this sleeving is the wrapping and bunching of cables in a deployed
situation or when frequent access to cables is necessary.
Features and Benefits
• Flexible construction that conforms to irregular shapes and contours.
• Hook and loop feature wraps over cable bundle allowing future
access to cables.
• Easy access saves assembly time and allows for easy splicing or insertion of additional wires.
• PET yarn construction offers excellent protection against cuts and
abrasions.
MATERIAL
Operating
Temperature
Melting Point +482 °F (+250 °C)
Abrasion Resistance Medium
Flammability UL 94 V0
Polyester (PET)
-94°F to +257°F (-70°C to +125°C)
PART
NO. TYPE
170-03148* BSHKLP120B 1/2 (12.7) 0.025 (0.635) Black 100.0 (30.5) 1.3 (0.6)
170-03149* BSHKLP340B 3/4 (19.1) 0.025 (0.635) Black 100.0 (30.5) 1.8 (0.8)
170-03150* BSHKLP1140B 1-1/4 (31.8) 0.025 (0.635) Black 100.0 (30.5) 2.3 (1.0)
170-03151* BSHKLP200B 2 (50.8) 0.025 (0.635) Black 100.0 (30.5) 3.2 (1.5)
170-03152* BSHKLP212B 2-1/2 (63.5) 0.025 (0.635) Black 100.0 (30.5) 3.8 (1.7)
Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
*This product meets UL standards. Please see appendix for specific file numbers.
Nominal Dia.
in. (mm)
Wall Thickness
(WT)
in. (mm) Color
Reel
Length
ft (m)
Weight
lbs. (kg)
342
Please note! Not all products listed on this page may have this approval. Please check our website for latest approvals.
