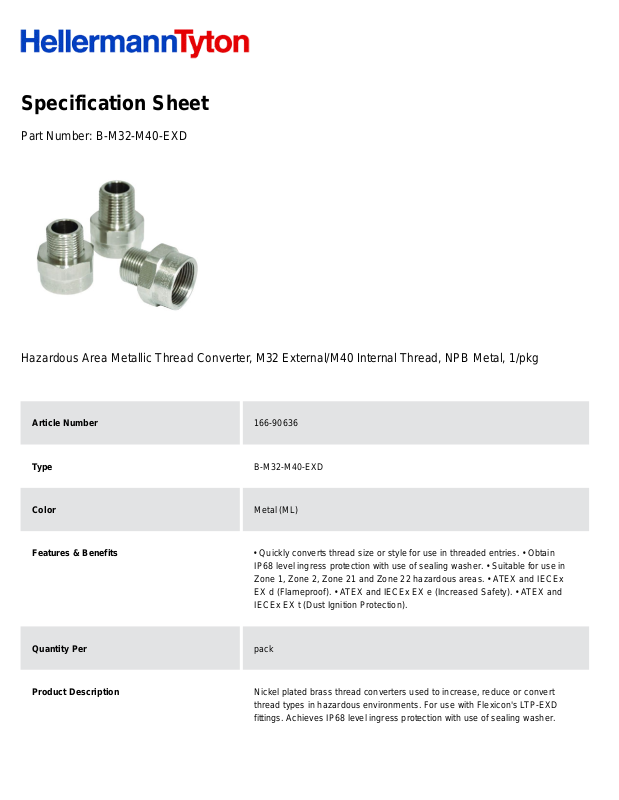

Specification Sheet
Part Number:
B-M32-M40-EXD
Hazardous Area Metallic Thread Converter, M32 External/M40 Internal Thread, NPB Metal, 1/pkg
Article Number
166-90636
Type
B-M32-M40-EXD
Color
Metal (ML)
Features & Benefits
• Quickly converts thread size or style for use in threaded entries. • Obtain
IP68 level ingress protection with use of sealing washer. • Suitable for use in
Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas. • ATEX and IECEx
EX d (Flameproof). • ATEX and IECEx EX e (Increased Safety). • ATEX and
IECEx EX t (Dust Ignition Protection).
Quantity Per
pack
Product Description
Nickel plated brass thread converters used to increase, reduce or convert
thread types in hazardous environments. For use with Flexicon's LTP-EXD
fittings. Achieves IP68 level ingress protection with use of sealing washer.
Short Description
Hazardous Area Metallic Thread Converter, M32 External/M40 Internal Thread,
NPB Metal, 1/pkg
Global Part Name
B-M32-M40-EXD-NPB-ML
Technical Description
Manufacturer Reference Number: B-M32-M40-EXD
Variant
Converter
Height H (Imperial)
1.18
Height H (Metric)
30.0
Nominal Diameter (Metric)
40
Material
Nickel Plated Brass (NPB)
Material Shortcut
NPB
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
