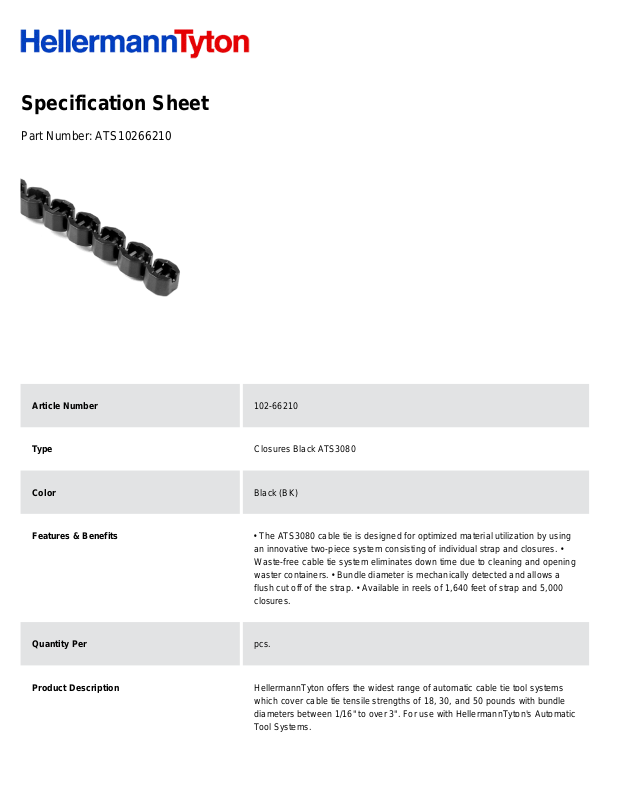

Page 1
Specification Sheet
Part Number:
ATS10266210
Article Number
102-66210
Type
Closures Black ATS3080
Color
Black (BK)
Features & Benefits
• The ATS3080 cable tie is designed for optimized material utilization by using
an innovative two-piece system consisting of individual strap and closures. •
Waste-free cable tie system eliminates down time due to cleaning and opening
waster containers. • Bundle diameter is mechanically detected and allows a
flush cut off of the strap. • Available in reels of 1,640 feet of strap and 5,000
closures.
Quantity Per
pcs.
Product Description
HellermannTyton offers the widest range of automatic cable tie tool systems
which cover cable tie tensile strengths of 18, 30, and 50 pounds with bundle
diameters between 1/16" to over 3". For use with HellermannTyton's Automatic
Tool Systems.
Page 2
Short Description
Cable Ties for ATS3080, 50lb Tensile Strength, PA66HSUV, Black, 5000/reel
Global Part Name
Closures Black ATS3080-PA66HSUV-BK
Technical Description
Cable Tie Closures for ATS3080, Black
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
0.35
Length L (Metric)
9.0
Identification Plate Position
none
Reel Diameter (Imperial)
15.25
Reel Diameter (Metric))
387
Reel Width (Imperial)
3.5
Reel Width (Metric)
88.9
Releasable Closure
No
Width W (Imperial)
0.31
Width W (Metric)
8.0
Bundle Diameter Min (Metric)
0.0
Bundle Diameter Max (Imperial)
3.14
Page 3
Bundle Diameter Max (Metric)
80.0
Height H (Imperial)
0.212
Height H (Metric)
5.4
Material
Polyamide 6.6 heat and UV stabilized (PA66HSUV)
Material Shortcut
PA66HSUV
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
5000
Package Quantity (Metric)
5000
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.31
Reel Weight (Imperial)
3.5
Page 4
Reel Weight (Metric)
1.58
