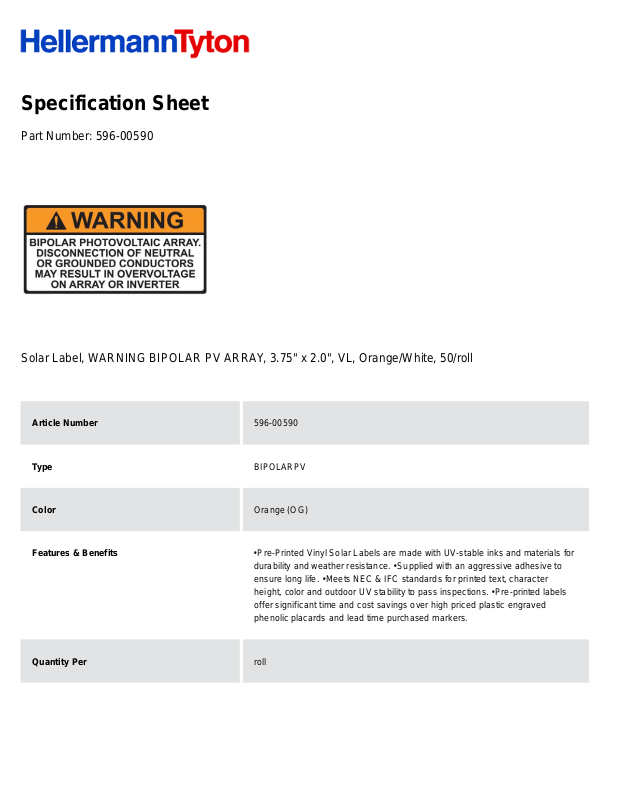

Specification Sheet
Part Number:
596-00590
Solar Label, WARNING BIPOLAR PV ARRAY, 3.75" x 2.0", VL, Orange/White, 50/roll
Article Number
596-00590
Type
BIPOLARPV
Color
Orange (OG)
Features & Benefits
•
Pre-Printed Vinyl Solar Labels are made with UV-stable inks and materials for
durability and weather resistance. •
Supplied with an aggressive adhesive to
ensure long life. •
Meets NEC & IFC standards for printed text, character
height, color and outdoor UV stability to pass inspections. •
Pre-printed labels
offer significant time and cost savings over high priced plastic engraved
phenolic placards and lead time purchased markers.
Quantity Per
roll
Product Description
HellermannTyton pre-printed vinyl Solar Installation Labels are designed to
meet the requirements of the National Electrical Code and the International
Fire Code as well as being acceptable to the Authority Having Jurisdiction
(AHJ). Labels are made with durable UV-stable materials and adhesives that
are designed to stick to both baked enamel and powder coat surfaces. Where
applicable, labels are made using reflective materials for first responder safety.
Some pre-printed labels are printable using a thermal transfer printer when
variable voltage or series data must be printed and displayed.
Short Description
Solar Label, WARNING BIPOLAR PV ARRAY, 3.75" x 2.0", VL, Orange/White,
50/roll
Global Part Name
BIPOLARPV-443/552-OG
Technical Description
Pre-Printed Solar Label, "WARNING - BIPOLAR PV ARRAY", 3.75" X 2",
Orange/White
Local Order Number 2
Cross Reference = 10 per pack: 596-00667; Metal Solar Placard 5 pack:
596-00835; Spanish version 50 per roll: 596-00808
Length L (Imperial)
3.75
Length L (Metric)
95.25
Width W (Imperial)
3.75
Width W (Metric)
95.25
Thickness T (Metric)
64.0
Height H (Imperial)
2.0
Height H (Metric)
50.80
Material
Type 443/552, UV Stable Flexible White Vinyl with Acrylic Laminate
Material Shortcut
443/552
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +174°F (-40°C to +79°C)
Operating Temperature (Metric)
-40°F to +174°F (-40°C to +79°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL 969
Warranty (US)
Yes
UL Recognized (US)
Yes
Package Quantity(Imperial)
50
Package Quantity (Metric)
50
Customs Number
3919102055
Labels per Column
1
Labels per Row
1
Weight (Metric)
0.521
Weight (Imperial)
3.2
