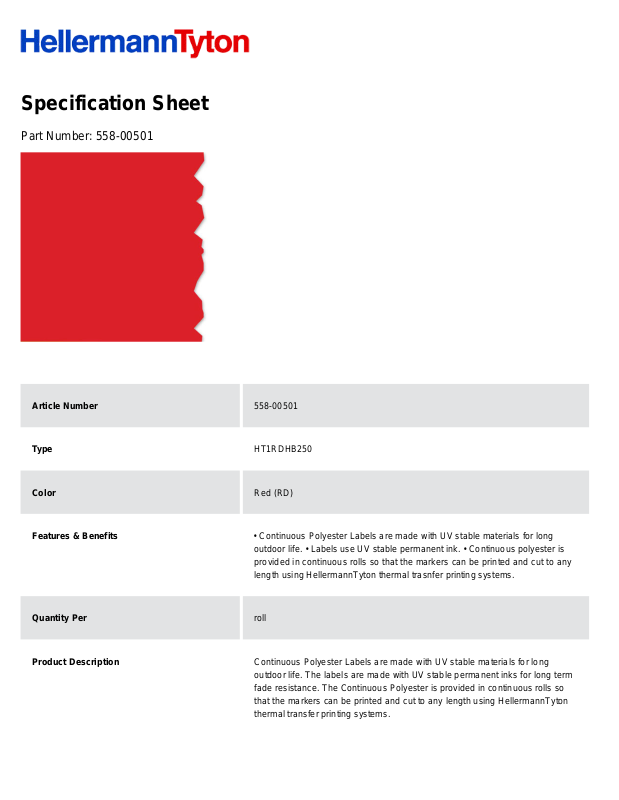

Specification Sheet
Part Number:
558-00501
Article Number
558-00501
Type
HT1RDHB250
Color
Red (RD)
Features & Benefits
• Continuous Polyester Labels are made with UV stable materials for long
outdoor life. • Labels use UV stable permanent ink. • Continuous polyester is
provided in continuous rolls so that the markers can be printed and cut to any
length using HellermannTyton thermal trasnfer printing systems.
Quantity Per
roll
Product Description
Continuous Polyester Labels are made with UV stable materials for long
outdoor life. The labels are made with UV stable permanent inks for long term
fade resistance. The Continuous Polyester is provided in continuous rolls so
that the markers can be printed and cut to any length using HellermannTyton
thermal transfer printing systems.
Page 2
Short Description
Adhesive Labels, Solid Color Continuous Roll, Reflective, 1.0" x 250', UV
Stable PET, Red, 250ft/roll
Global Part Name
HT1RDHB250-840/926-RD
Technical Description
Solid Colored Continuous Roll, Reflective, 1.0" X 250', Red
Length L (Imperial)
250.0
Length L (Metric)
76.2
Variant
3.2mil, 50lb bleached kraft paper
Width W (Imperial)
1.0
Width W (Metric)
25.4
Width of Liner (Metric)
25.4
Width of Liner (imperial)
1.0
Material
Type 840/926, Polyester (PET), UV stable, clear Polyester laminate
Material Shortcut
840/926
Adhesive
Acrylic
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +302°F (-40°C to +150°C)
Page 3
ROHS Complaint
Yes
Certification/Specification WEB
ANSI Standard Z535.4 NEC2014 NEC2011 CSA 66956 IFC 2012 UL 969
UL Recognized (US)
Yes
Package Quantity(Imperial)
250
Package Quantity (Metric)
76.20
Customs Number
3919102055
Labels per Column
1
Labels per Row
1
