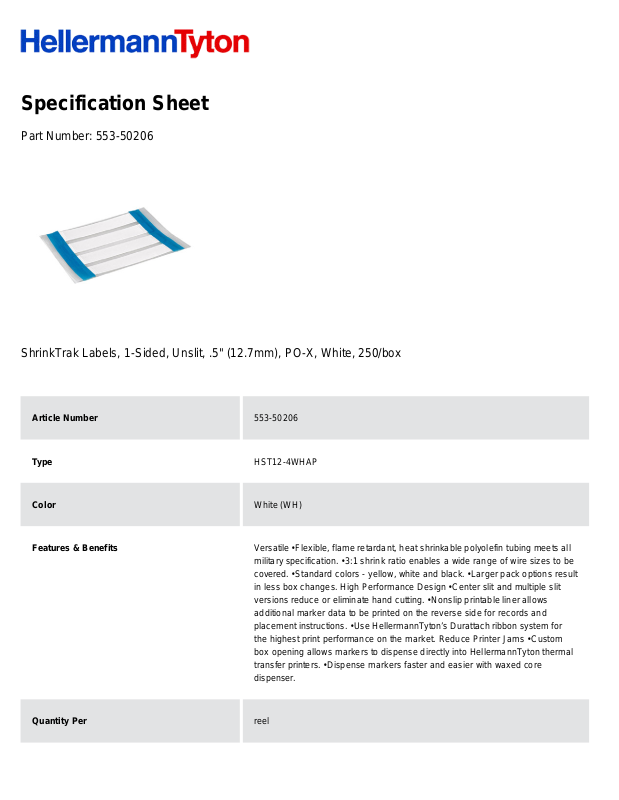

Specification Sheet
Part Number:
553-50206
ShrinkTrak Labels, 1-Sided, Unslit, .5" (12.7mm), PO-X, White, 250/box
Article Number
553-50206
Type
HST12-4WHAP
Color
White (WH)
Features & Benefits
Versatile •
Flexible, flame retardant, heat shrinkable polyolefin tubing meets all
military specification. •
3:1 shrink ratio enables a wide range of wire sizes to be
covered. •
Standard colors - yellow, white and black. •
Larger pack options result
in less box changes. High Performance Design •
Center slit and multiple slit
versions reduce or eliminate hand cutting. •
Nonslip printable liner allows
additional marker data to be printed on the reverse side for records and
placement instructions. •
Use HellermannTyton’s Durattach ribbon system for
the highest print performance on the market. Reduce Printer Jams •
Custom
box opening allows markers to dispense directly into HellermannTyton thermal
transfer printers. •
Dispense markers faster and easier with waxed core
dispenser.
Quantity Per
reel
Product Description
HellermannTyton's ShrinkTrak™ heat shrinkable markers make it easy to mark
wire, cable and other components. The military approved heat shrink tubing is
flattened and assembled in a ladder style carrier system for easy printing using
a thermal transfer printer. The ladder system creates a kit of markers that can
be sorted, removed and applied in any order thus saving time, labor and
speeding production.
Short Description
ShrinkTrak Labels, 1-Sided, Unslit, .5" (12.7mm), PO-X, White, 250/box
Global Part Name
HST12-4WHAP-PO-X-WH
Variant
Thin-Wall
Width W (Imperial)
1.9
Width W (Metric)
48.26
Thickness T (Imperial)
.003
Thickness T (Metric)
.0762
Height H (Imperial)
0.77
Height H (Metric)
19.55
Width of Liner (Metric)
76.2
Width of Liner (imperial)
3.0
Outside Diameter Max(Imperial)
0.5
Outside Diameter Max (metric)
12.7
Wall Thickness WT (Imperial)
0.033
