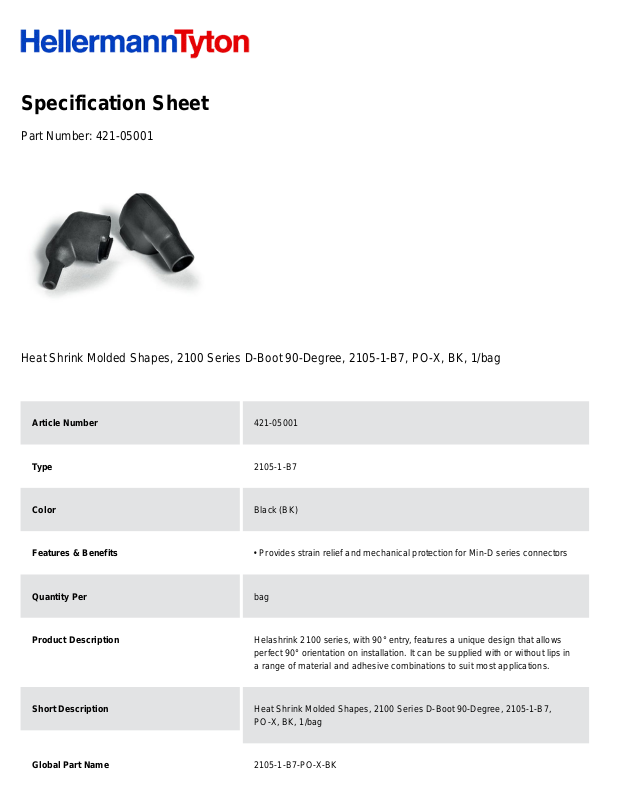

Specification Sheet
Part Number:
421-05001
Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2105-1-B7, PO-X, BK, 1/bag
Article Number
421-05001
Type
2105-1-B7
Color
Black (BK)
Features & Benefits
• Provides strain relief and mechanical protection for Min-D series connectors
Quantity Per
bag
Product Description
Helashrink 2100 series, with 90° entry, features a unique design that allows
perfect 90° orientation on installation. It can be supplied with or without lips in
a range of material and adhesive combinations to suit most applications.
Short Description
Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2105-1-B7,
PO-X, BK, 1/bag
Global Part Name
2105-1-B7-PO-X-BK
Material
Polyolefin, cross-linked (PO-X)
Material Shortcut
PO-X
Flammability
ASTM D635
Operating Temperature (Metric)
-67°F to +275°F (-55°C to +135°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
