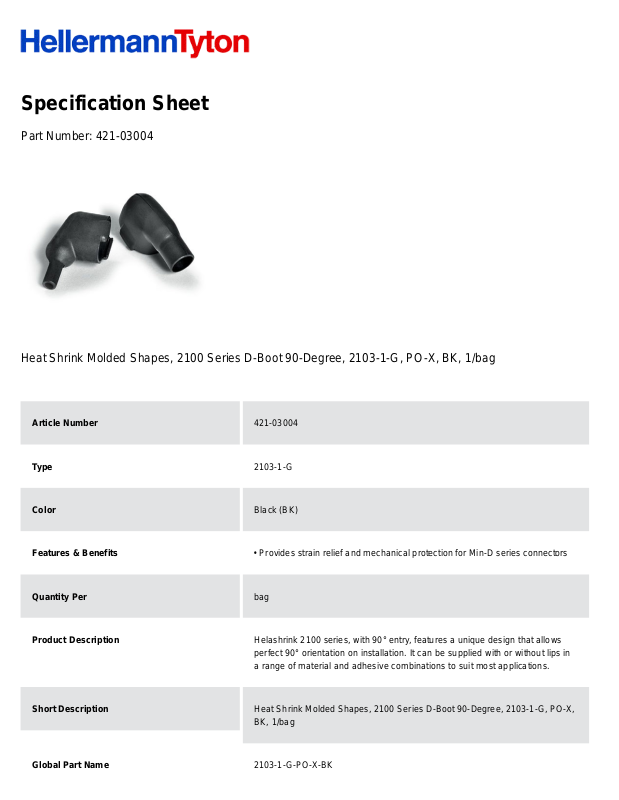

Specification Sheet
Part Number:
421-03004
Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2103-1-G, PO-X, BK, 1/bag
Article Number
421-03004
Type
2103-1-G
Color
Black (BK)
Features & Benefits
• Provides strain relief and mechanical protection for Min-D series connectors
Quantity Per
bag
Product Description
Helashrink 2100 series, with 90° entry, features a unique design that allows
perfect 90° orientation on installation. It can be supplied with or without lips in
a range of material and adhesive combinations to suit most applications.
Short Description
Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2103-1-G, PO-X,
BK, 1/bag
Global Part Name
2103-1-G-PO-X-BK
Material
Polyolefin, cross-linked (PO-X)
Material Shortcut
PO-X
Operating Temperature (Metric)
-103°F to +302°F (-75°C to +150°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
