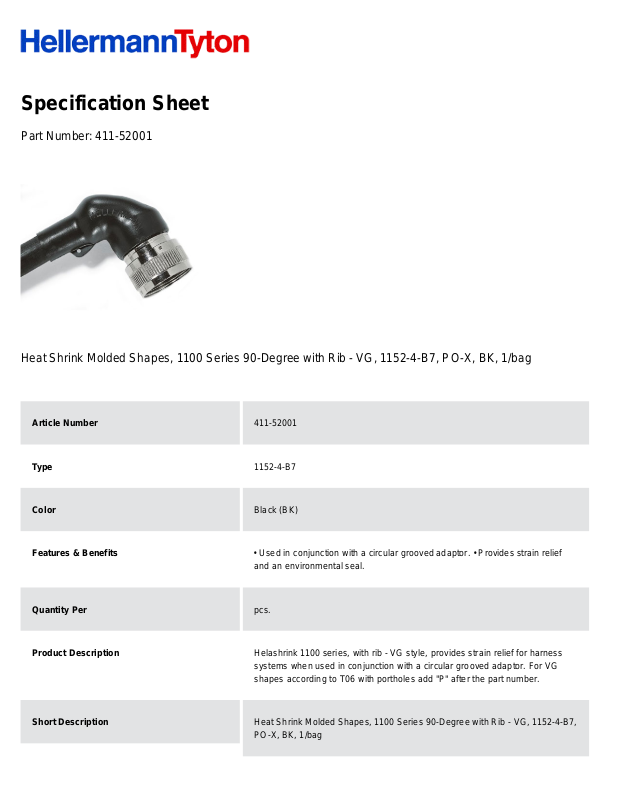

Specification Sheet
Part Number:
411-52001
Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - VG, 1152-4-B7, PO-X, BK, 1/bag
Article Number
411-52001
Type
1152-4-B7
Color
Black (BK)
Features & Benefits
• Used in conjunction with a circular grooved adaptor. • Provides strain relief
and an environmental seal.
Quantity Per
pcs.
Product Description
Helashrink 1100 series, with rib - VG style, provides strain relief for harness
systems when used in conjunction with a circular grooved adaptor. For VG
shapes according to T06 with portholes add "P" after the part number.
Short Description
Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - VG, 1152-4-B7,
PO-X, BK, 1/bag
Global Part Name
1152-4-B7-PO-X-BK
Variant
For plug
Material
Polyolefin, cross-linked (PO-X)
Material Shortcut
PO-X
Flammability
ASTM D635
Operating Temperature (Metric)
-67°F to +275°F (-55°C to +135°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
DAN341
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.004
