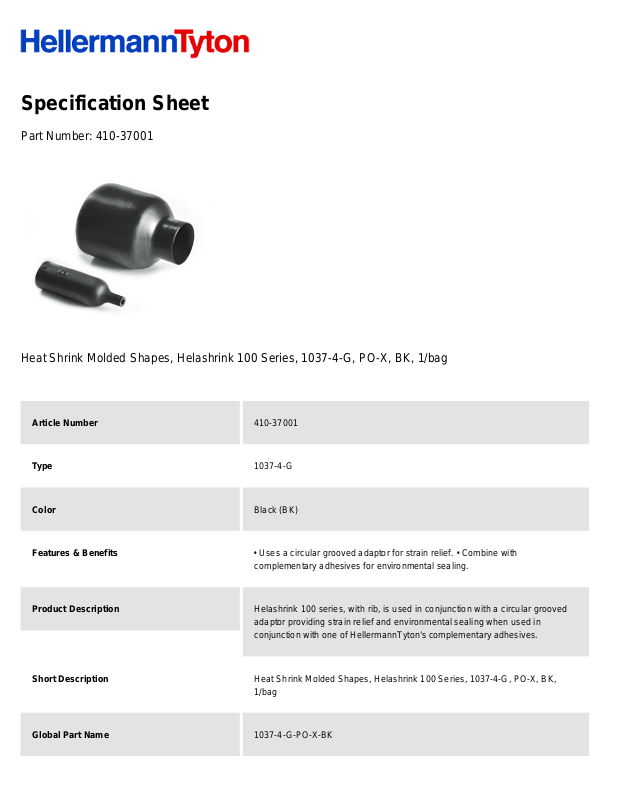

Specification Sheet
Part Number:
410-37001
Heat Shrink Molded Shapes, Helashrink 100 Series, 1037-4-G, PO-X, BK, 1/bag
Article Number
410-37001
Type
1037-4-G
Color
Black (BK)
Features & Benefits
• Uses a circular grooved adaptor for strain relief. • Combine with
complementary adhesives for environmental sealing.
Product Description
Helashrink 100 series, with rib, is used in conjunction with a circular grooved
adaptor providing strain relief and environmental sealing when used in
conjunction with one of HellermannTyton's complementary adhesives.
Short Description
Heat Shrink Molded Shapes, Helashrink 100 Series, 1037-4-G, PO-X, BK,
1/bag
Global Part Name
1037-4-G-PO-X-BK
Page 2
Material
Polyolefin, cross-linked (PO-X)
Material Shortcut
PO-X
Flammability
ASTM D635
Operating Temperature (Metric)
-103°F to +302°F (-75°C to +150°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.001
