Page 1

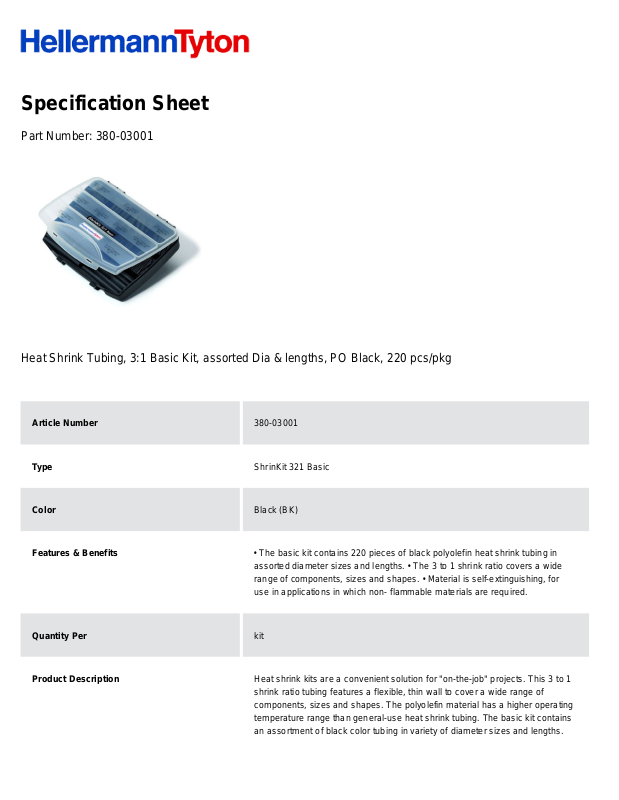

Specification Sheet
Part Number:
380-03001
Heat Shrink Tubing, 3:1 Basic Kit, assorted Dia & lengths, PO Black, 220 pcs/pkg
Article Number
380-03001
Type
ShrinKit 321 Basic
Color
Black (BK)
Features & Benefits
• The basic kit contains 220 pieces of black polyolefin heat shrink tubing in
assorted diameter sizes and lengths. • The 3 to 1 shrink ratio covers a wide
range of components, sizes and shapes. • Material is self-extinguishing, for
use in applications in which non- flammable materials are required.
Quantity Per
kit
Product Description
Heat shrink kits are a convenient solution for "on-the-job" projects. This 3 to 1
shrink ratio tubing features a flexible, thin wall to cover a wide range of
components, sizes and shapes. The polyolefin material has a higher operating
temperature range than general-use heat shrink tubing. The basic kit contains
an assortment of black color tubing in variety of diameter sizes and lengths.
Page 2
Short Description
Heat Shrink Tubing, 3:1 Basic Kit, assorted Dia & lengths, PO Black, 220
pcs/pkg
Global Part Name
ShrinKit 321 Basic-PO-X-BK
Variant
Thin-Wall
Material
Polyolefin, cross-linked (PO-X)
Material Shortcut
PO-X
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
-67°F to +275°F (-55°C to +135°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
SAE - AMS - DTL-23053/5 Class 1
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Customs Number
3926909987
Page 3
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.16
