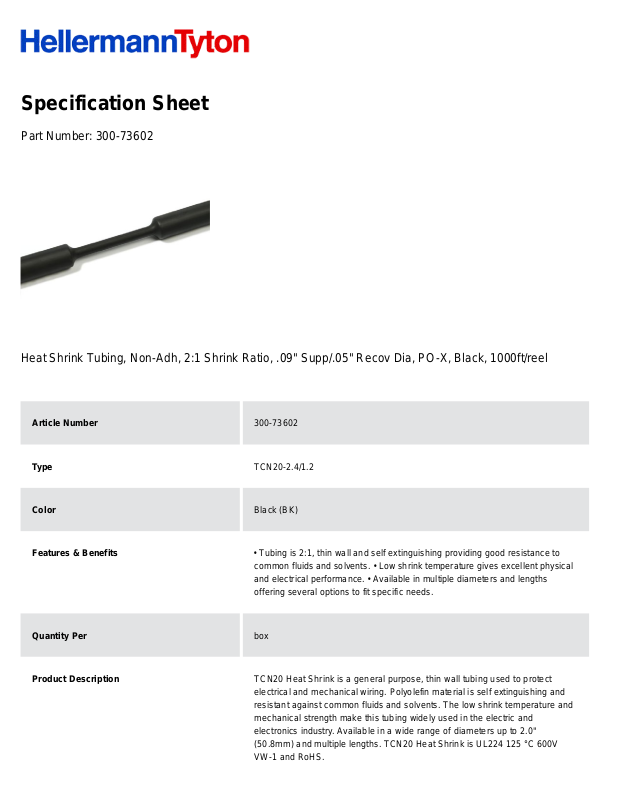

Specification Sheet
Part Number:
300-73602
Heat Shrink Tubing, Non-Adh, 2:1 Shrink Ratio, .09" Supp/.05" Recov Dia, PO-X, Black, 1000ft/reel
Article Number
300-73602
Type
TCN20-2.4/1.2
Color
Black (BK)
Features & Benefits
• Tubing is 2:1, thin wall and self extinguishing providing good resistance to
common fluids and solvents. • Low shrink temperature gives excellent physical
and electrical performance. • Available in multiple diameters and lengths
offering several options to fit specific needs.
Quantity Per
box
Product Description
TCN20 Heat Shrink is a general purpose, thin wall tubing used to protect
electrical and mechanical wiring. Polyolefin material is self extinguishing and
resistant against common fluids and solvents. The low shrink temperature and
mechanical strength make this tubing widely used in the electric and
electronics industry. Available in a wide range of diameters up to 2.0"
(50.8mm) and multiple lengths. TCN20 Heat Shrink is UL224 125 °C 600V
VW-1 and RoHS.
Short Description
Heat Shrink Tubing, Non-Adh, 2:1 Shrink Ratio, .09" Supp/.05" Recov Dia,
PO-X, Black, 1000ft/reel
Global Part Name
TCN20-2.4/1.2-PO-X-BK
Length L (Imperial)
1000.0
Length L (Metric)
304.8
Variant
Thin-Wall
Nominal Diameter (Imperial)
3/32
Nominal Diameter (Metric)
2.4
Wall Thickness WT (Imperial)
.017
Wall Thickness WT (Metric)
0.45
Material
Polyolefin, cross-linked (PO-X)
Material Shortcut
PO-X
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
-67°F to +257°F (-55°C to +125°C)
Reach Complaint(Article 33)
Yes
