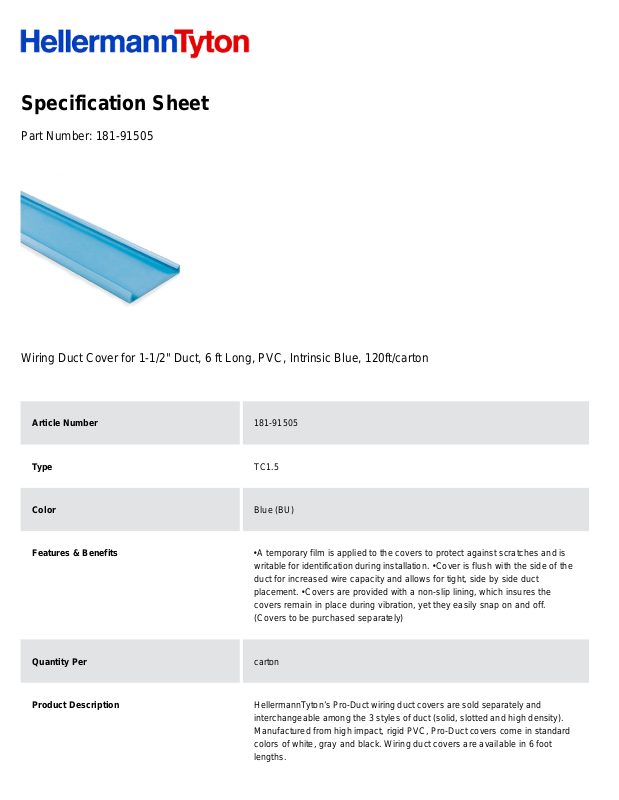

Specification Sheet
Part Number:
181-91505
Wiring Duct Cover for 1-1/2" Duct, 6 ft Long, PVC, Intrinsic Blue, 120ft/carton
Article Number
181-91505
Type
TC1.5
Color
Blue (BU)
Features & Benefits
•
A temporary film is applied to the covers to protect against scratches and is
writable for identification during installation. •
Cover is flush with the side of the
duct for increased wire capacity and allows for tight, side by side duct
placement. •
Covers are provided with a non-slip lining, which insures the
covers remain in place during vibration, yet they easily snap on and off.
(Covers to be purchased separately)
Quantity Per
carton
Product Description
HellermannTyton’s Pro-Duct wiring duct covers are sold separately and
interchangeable among the 3 styles of duct (solid, slotted and high density).
Manufactured from high impact, rigid PVC, Pro-Duct covers come in standard
colors of white, gray and black. Wiring duct covers are available in 6 foot
lengths.
Short Description
Wiring Duct Cover for 1-1/2" Duct, 6 ft Long, PVC, Intrinsic Blue, 120ft/carton
Global Part Name
TC1.5-PVC-BU
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
1.5
Width W (Metric)
38.1
Height H (Imperial)
0.308
Height H (Metric)
7.82
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
ROHS Complaint
Yes
