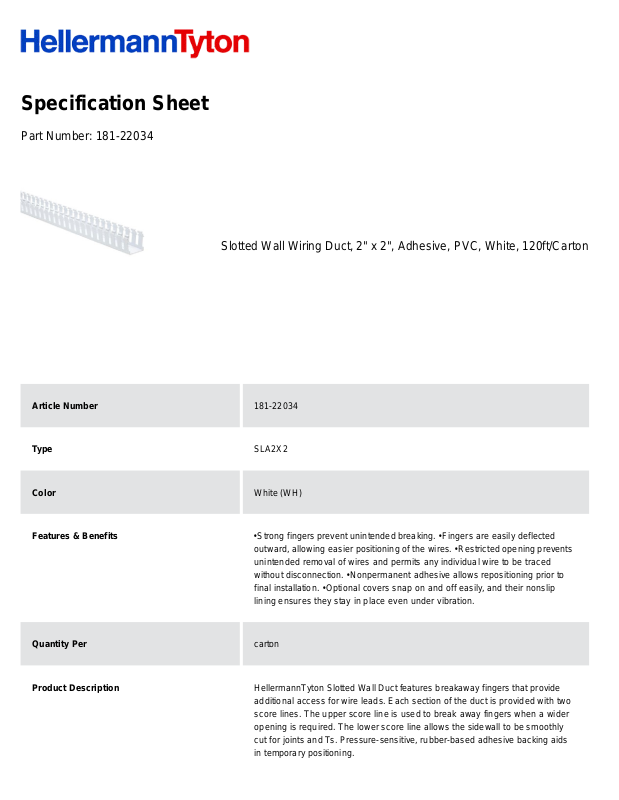

Specification Sheet
Part Number:
181-22034
Slotted Wall Wiring Duct, 2" x 2", Adhesive, PVC, White, 120ft/Carton
Article Number
181-22034
Type
SLA2X2
Color
White (WH)
Features & Benefits
•
Strong fingers prevent unintended breaking. •
Fingers are easily deflected
outward, allowing easier positioning of the wires. •
Restricted opening prevents
unintended removal of wires and permits any individual wire to be traced
without disconnection. •
Nonpermanent adhesive allows repositioning prior to
final installation. •
Optional covers snap on and off easily, and their nonslip
lining ensures they stay in place even under vibration.
Quantity Per
carton
Product Description
HellermannTyton Slotted Wall Duct features breakaway fingers that provide
additional access for wire leads. Each section of the duct is provided with two
score lines. The upper score line is used to break away fingers when a wider
opening is required. The lower score line allows the sidewall to be smoothly
cut for joints and Ts. Pressure-sensitive, rubber-based adhesive backing aids
in temporary positioning.
Short Description
Slotted Wall Wiring Duct, 2" x 2", Adhesive, PVC, White, 120ft/Carton
Global Part Name
SLA2X2-PVC-WH
Technical Description
Adhesive
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
2.0
Width W (Metric)
50.8
Height H (Imperial)
2.07
Height H (Metric)
52.6
Mounting Hole Centers (Imperial)
4.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
