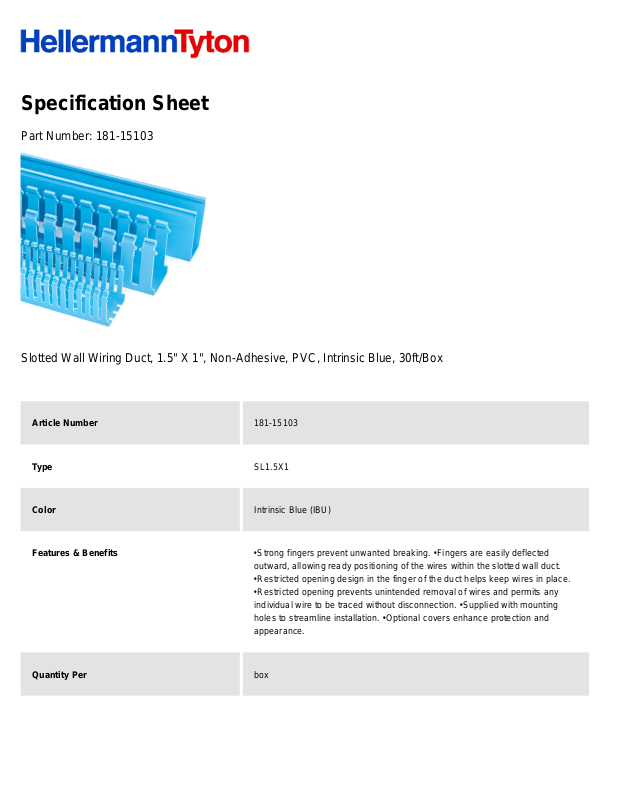

Specification Sheet
Part Number:
181-15103
Slotted Wall Wiring Duct, 1.5" X 1", Non-Adhesive, PVC, Intrinsic Blue, 30ft/Box
Article Number
181-15103
Type
SL1.5X1
Color
Intrinsic Blue (IBU)
Features & Benefits
•
Strong fingers prevent unwanted breaking. •
Fingers are easily deflected
outward, allowing ready positioning of the wires within the slotted wall duct.
•
Restricted opening design in the finger of the duct helps keep wires in place.
•
Restricted opening prevents unintended removal of wires and permits any
individual wire to be traced without disconnection. •
Supplied with mounting
holes to streamline installation. •
Optional covers enhance protection and
appearance.
Quantity Per
box
Product Description
Pro-Duct slotted wall wiring duct features break-away fingers which provide
additional access for wire leads. Each section of the duct is provided with two
score lines. The upper score line is used to break away fingers when a greater
opening is required. The lower score line allows the sidewall to be smoothly
cut for joints and Ts.
Short Description
Slotted Wall Wiring Duct, 1.5" X 1", Non-Adhesive, PVC, Intrinsic Blue,
30ft/Box
Global Part Name
SL1.5X1-PVC-BU
Technical Description
Non-Adhesive
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
1.5
Width W (Metric)
38.1
Height H (Imperial)
1.06
Height H (Metric)
26.90
Mounting Hole Centers (Imperial)
4.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
