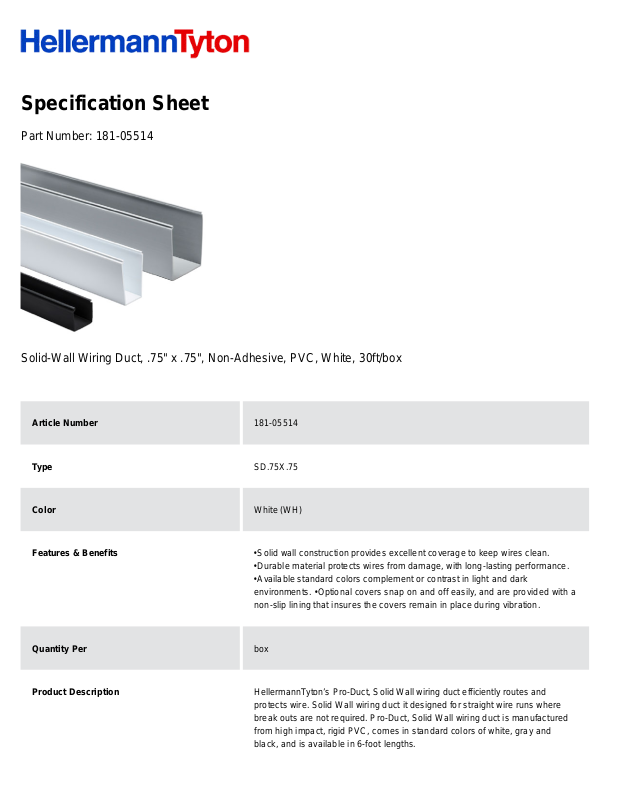

Specification Sheet
Part Number:
181-05514
Solid-Wall Wiring Duct, .75" x .75", Non-Adhesive, PVC, White, 30ft/box
Article Number
181-05514
Type
SD.75X.75
Color
White (WH)
Features & Benefits
•
Solid wall construction provides excellent coverage to keep wires clean.
•
Durable material protects wires from damage, with long-lasting performance.
•
Available standard colors complement or contrast in light and dark
environments. •
Optional covers snap on and off easily, and are provided with a
non-slip lining that insures the covers remain in place during vibration.
Quantity Per
box
Product Description
HellermannTyton’s Pro-Duct, Solid Wall wiring duct efficiently routes and
protects wire. Solid Wall wiring duct it designed for straight wire runs where
break outs are not required. Pro-Duct, Solid Wall wiring duct is manufactured
from high impact, rigid PVC, comes in standard colors of white, gray and
black, and is available in 6-foot lengths.
Short Description
Solid-Wall Wiring Duct, .75" x .75", Non-Adhesive, PVC, White, 30ft/box
Global Part Name
SD.75X.75-PVC-WH
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
0.75
Width W (Metric)
19.1
Height H (Imperial)
0.80
Height H (Metric)
20.3
Mounting Hole Centers (Imperial)
4.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
