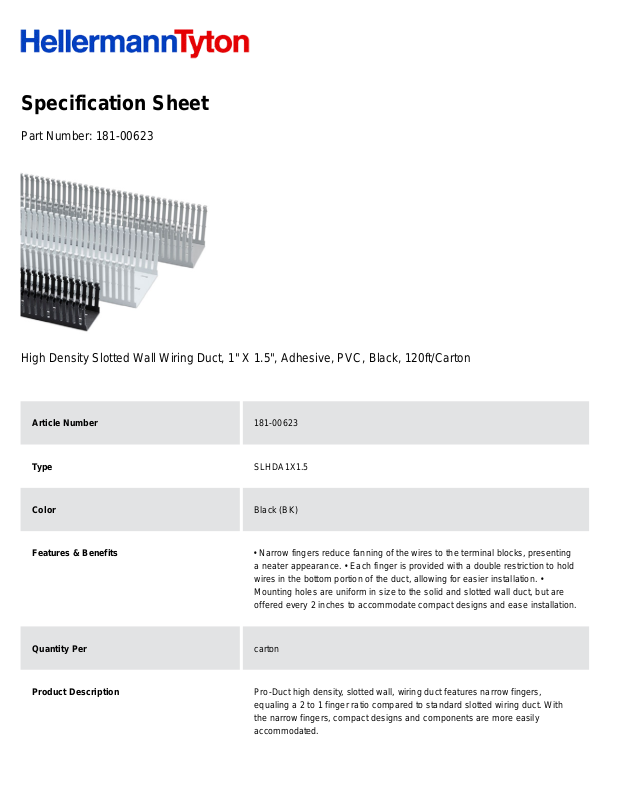

Specification Sheet
Part Number:
181-00623
High Density Slotted Wall Wiring Duct, 1" X 1.5", Adhesive, PVC, Black, 120ft/Carton
Article Number
181-00623
Type
SLHDA1X1.5
Color
Black (BK)
Features & Benefits
• Narrow fingers reduce fanning of the wires to the terminal blocks, presenting
a neater appearance. • Each finger is provided with a double restriction to hold
wires in the bottom portion of the duct, allowing for easier installation. •
Mounting holes are uniform in size to the solid and slotted wall duct, but are
offered every 2 inches to accommodate compact designs and ease installation.
Quantity Per
carton
Product Description
Pro-Duct high density, slotted wall, wiring duct features narrow fingers,
equaling a 2 to 1 finger ratio compared to standard slotted wiring duct. With
the narrow fingers, compact designs and components are more easily
accommodated.
Short Description
High Density Slotted Wall Wiring Duct, 1" X 1.5", Adhesive, PVC, Black,
120ft/Carton
Global Part Name
SLHDA1X1.5-PVC-BK
Technical Description
Adhesive
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
1.0
Width W (Metric)
25.4
Height H (Imperial)
1.57
Height H (Metric)
39.90
Mounting Hole Centers (Imperial)
2.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
