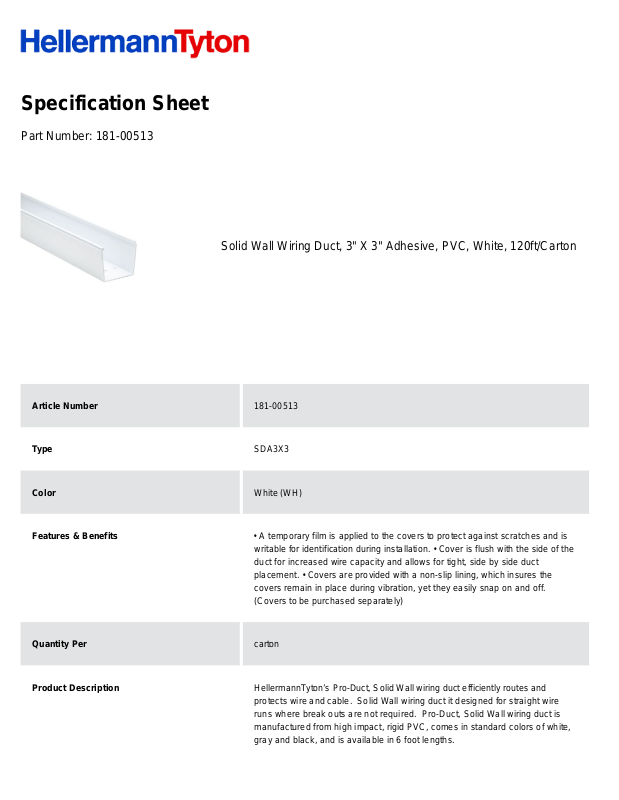

Specification Sheet
Part Number:
181-00513
Solid Wall Wiring Duct, 3" X 3" Adhesive, PVC, White, 120ft/Carton
Article Number
181-00513
Type
SDA3X3
Color
White (WH)
Features & Benefits
• A temporary film is applied to the covers to protect against scratches and is
writable for identification during installation. • Cover is flush with the side of the
duct for increased wire capacity and allows for tight, side by side duct
placement. • Covers are provided with a non-slip lining, which insures the
covers remain in place during vibration, yet they easily snap on and off.
(Covers to be purchased separately)
Quantity Per
carton
Product Description
HellermannTyton’s Pro-Duct, Solid Wall wiring duct efficiently routes and
protects wire and cable. Solid Wall wiring duct it designed for straight wire
runs where break outs are not required. Pro-Duct, Solid Wall wiring duct is
manufactured from high impact, rigid PVC, comes in standard colors of white,
gray and black, and is available in 6 foot lengths.
Short Description
Solid Wall Wiring Duct, 3" X 3" Adhesive, PVC, White, 120ft/Carton
Global Part Name
SDA3X3-PVC-WH
Technical Description
Adhesive
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
3.0
Width W (Metric)
76.2
Height H (Imperial)
3.07
Height H (Metric)
77.9
Mounting Hole Centers (Imperial)
4.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
