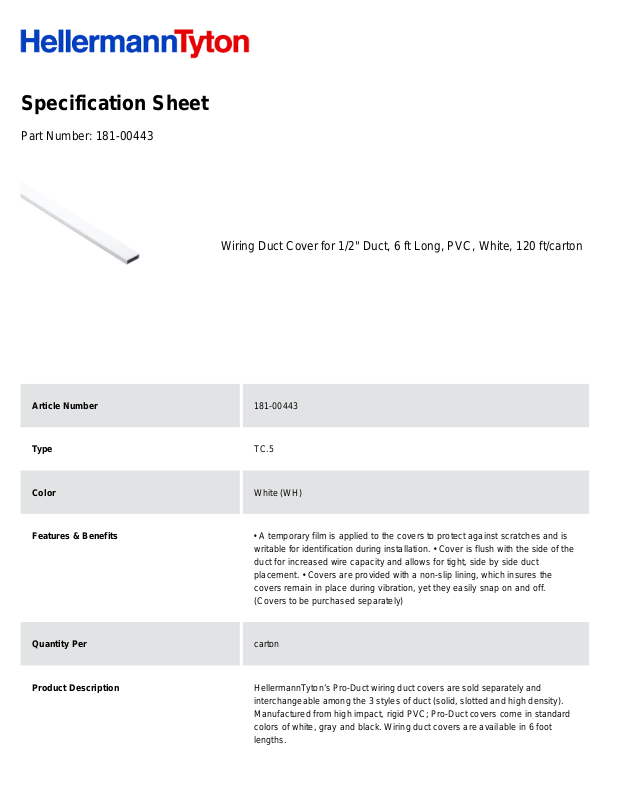

Specification Sheet
Part Number:
181-00443
Wiring Duct Cover for 1/2" Duct, 6 ft Long, PVC, White, 120 ft/carton
Article Number
181-00443
Type
TC.5
Color
White (WH)
Features & Benefits
• A temporary film is applied to the covers to protect against scratches and is
writable for identification during installation. • Cover is flush with the side of the
duct for increased wire capacity and allows for tight, side by side duct
placement. • Covers are provided with a non-slip lining, which insures the
covers remain in place during vibration, yet they easily snap on and off.
(Covers to be purchased separately)
Quantity Per
carton
Product Description
HellermannTyton’s Pro-Duct wiring duct covers are sold separately and
interchangeable among the 3 styles of duct (solid, slotted and high density).
Manufactured from high impact, rigid PVC; Pro-Duct covers come in standard
colors of white, gray and black. Wiring duct covers are available in 6 foot
lengths.
Short Description
Wiring Duct Cover for 1/2" Duct, 6 ft Long, PVC, White, 120 ft/carton
Global Part Name
TC.5-PVC-WH
Technical Description
Wiring Duct Cover for 1/2" Duct, White
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
0.64
Width W (Metric)
16.3
Height H (Imperial)
0.219
Height H (Metric)
5.56
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
