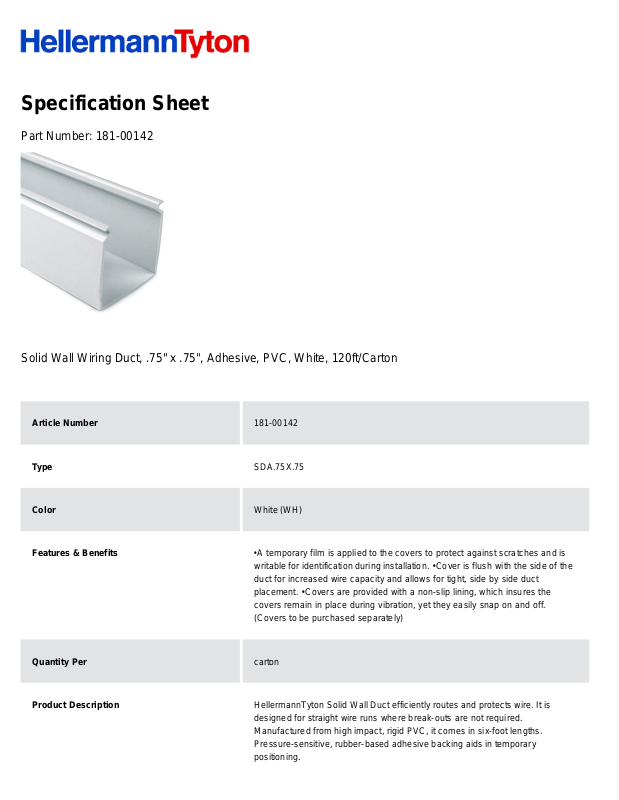

Specification Sheet
Part Number:
181-00142
Solid Wall Wiring Duct, .75" x .75", Adhesive, PVC, White, 120ft/Carton
Article Number
181-00142
Type
SDA.75X.75
Color
White (WH)
Features & Benefits
•
A temporary film is applied to the covers to protect against scratches and is
writable for identification during installation. •
Cover is flush with the side of the
duct for increased wire capacity and allows for tight, side by side duct
placement. •
Covers are provided with a non-slip lining, which insures the
covers remain in place during vibration, yet they easily snap on and off.
(Covers to be purchased separately)
Quantity Per
carton
Product Description
HellermannTyton Solid Wall Duct efficiently routes and protects wire. It is
designed for straight wire runs where break-outs are not required.
Manufactured from high impact, rigid PVC, it comes in six-foot lengths.
Pressure-sensitive, rubber-based adhesive backing aids in temporary
positioning.
Short Description
Solid Wall Wiring Duct, .75" x .75", Adhesive, PVC, White, 120ft/Carton
Global Part Name
SDA.75X.75-PVC-WH
Technical Description
Adhesive
Length L (Imperial)
6.0
Length L (Metric)
1.83
Width W (Imperial)
0.75
Width W (Metric)
19.1
Height H (Imperial)
0.8
Height H (Metric)
20.3
Mounting Hole Centers (Imperial)
4.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
